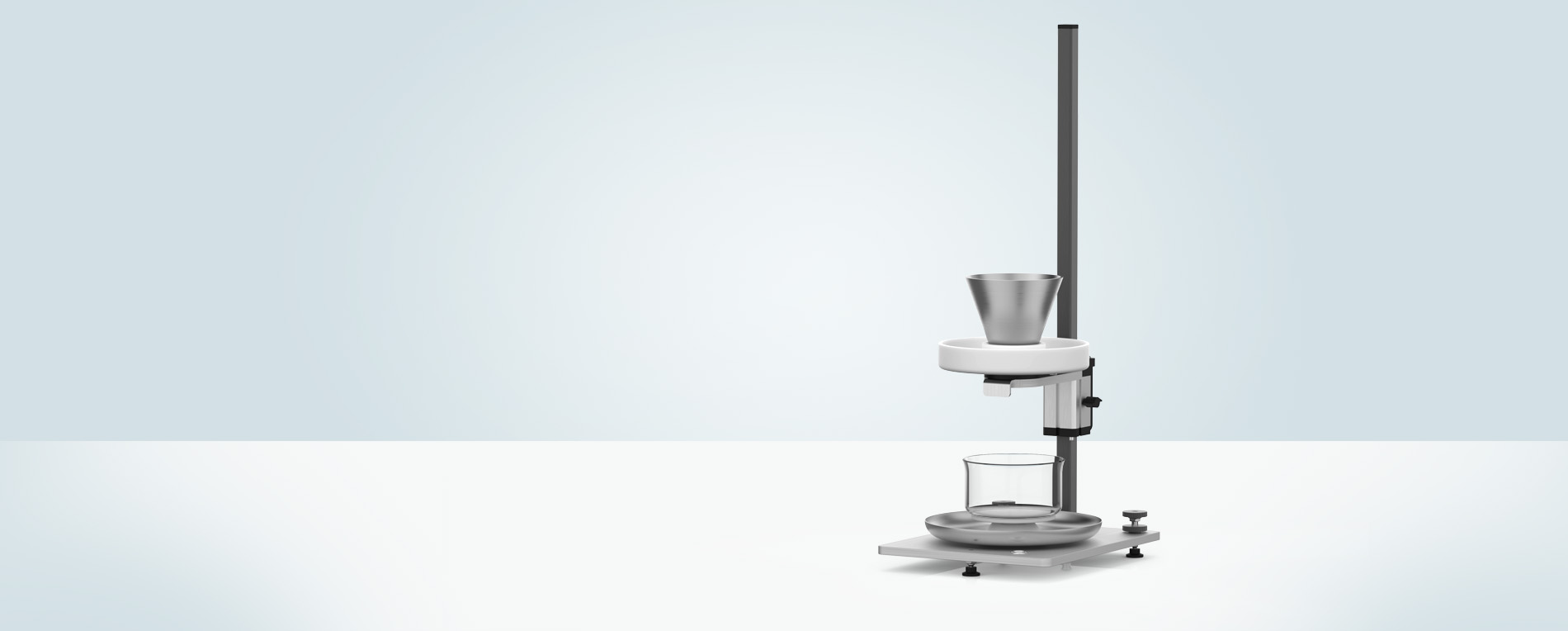

PTG-M100
Manual Powder Flowability and Angle of Repose Tester
The Pharma-Test PTG-M100 is a high-precision manual powder flowability and angle of repose tester designed for pharmaceutical and industrial laboratories. It provides reliable measurements of powder flow characteristics — key parameters in powder processing, formulation development, and quality control. This instrument ensures testing in full compliance with recognized international standards, including USP <1174>, EP <2.9.36>, EP <2.9.16> and ISO 4324.
This user-friendly and durable analyzer allows measurement of both flow time and angle of repose using the same setup, making it an essential tool for characterizing granules and powders during formulation and production.
Key Features
• Standards-Compliant Testing
Fully conforms with USP <1174>, EP <2.9.36>, EP <2.9.16> and ISO 4324 (12/83) requirements for powder flow and angle of repose testing.
• Dual Functionality
Performs both angle of repose and flowability (flow time) measurements using a single instrument design.
• Angle of Repose Measurement
The instrument forms a free-standing powder cone on a 100 mm dish. The included digital height gauge accurately measures cone height, enabling the calculation of the angle of repose.
• Flowability / Flow Time Testing
Flow time is measured by timing the passage of a 100 g sample through a funnel with a specified nozzle opening, using an external stopwatch and analytical balance (not included).
• Adjustable Design
The conical funnel and optional manual stirrer can be adjusted vertically and locked in place without tools, enhancing ease of use with powders of varying flow properties.
• Stable and Easy Setup
A robust base plate with integrated spirit level and adjustable leveling screws ensures proper alignment and reproducible results.
Technical Specifications
| Parameter | Specification |
| Instruments dimensions (with digital height gauge) | Approx. 300 × 500 × 500 mm (W × D × H) |
| Packaging dimensions (incl. digital height gauge) | Approx. 780 × 380 × 500 mm |
| Digital height gauge resolution | 0.01 mm |
| Digital height gauge reproducibility | 0.01 mm |
| Digital height gauge max. measurement speed | 1 m/s |
| Digital height gauge power |
Button cell battery 1.5 V (LR44/AG13) |
| Net / gross weight (approx.) | Approx. 14 kg / 16 kg |
| Compliance / Certification | USP/EP/ISO standards compliance, CE certified |
| Validation | IQ & OQ documents included |
Advantages
✔ Affordable and Practical – An effective alternative to fully automated systems while maintaining reliable performance.
✔ Simple and Intuitive Use – Tool-free adjustments and straightforward operation make it ideal for routine testing.
✔ Robust and Reliable – Sturdy construction ensures dependable measurements and long service life.
✔ Flexible Measurement – Suitable for multiple powder types, with optional accessories to support challenging samples.
Standard Scope of Supply
The PTG-M100 is supplied ready for immediate use with:
• PTG-M100 instrument frame and base
• Digital height gauge for angle of repose
• Stainless steel pouring nozzles (10 mm, 15 mm, 25 mm diameters)
• 600 ml powder beaker
• Comprehensive documentation:
– User manual
– QC/DQ certificate
– IQ documentation
– OQ documentation
– Conformity declaration
– CE/EMC declaration
– Instrument logbook
Optional Accessories
To expand measurement capabilities:
• Manual stirrer for poorly flowing powders
• Calibration certificate for the digital height gauge
• Stopwatch and analytical balance for enhanced flowability testing
• Additional pouring nozzles with different diameters upon request
• Certified validation tools for quality assurance workflows
The Pharma-Test PTG-M100 Manual Powder Flowability and Angle of Repose Tester is a versatile, standards-compliant solution for characterizing powder flow behavior. Its rugged design, dual-mode testing, and ease of use make it an excellent choice for pharmaceutical R&D and quality control environments where accurate and repeatable powder property analysis is essential.
