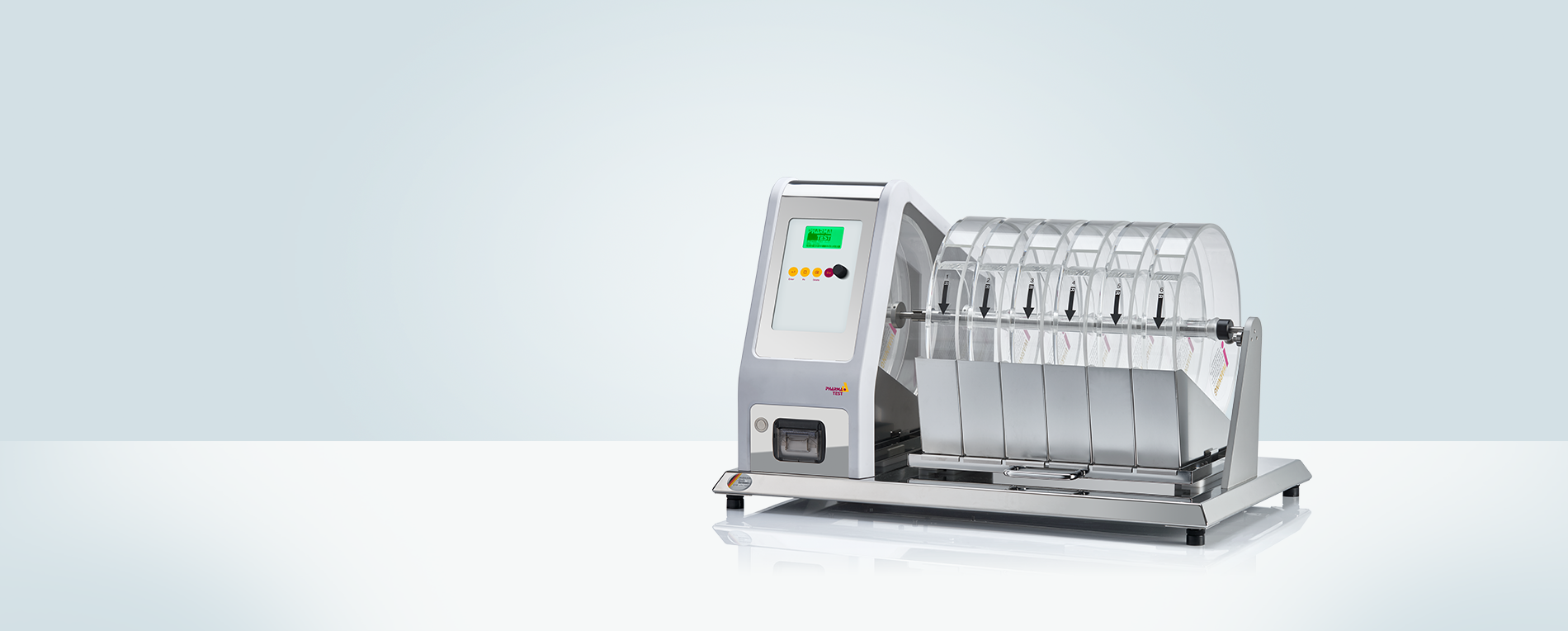

PTF 600
Six Drum Tablet Friability Test Instrument
The PTF 600 is an advanced six-drum tablet friability and abrasion test instrument, engineered to comply with USP <1216>, EP <2.9.7>, and JP <14> Pharmacopoeias. This high-capacity instrument is designed for thorough testing of tablets’ mechanical strength, offering automated features and connectivity options for enhanced functionality.
Key Features:
• Six Drum System: Allows simultaneous testing of up to six samples for efficient throughput.
• Compliance: Meets stringent standards for friability and abrasion testing as outlined in major pharmacopoeias.
• Automated Discharge: Facilitates automated sample discharge into separate stainless steel collectors, reducing manual handling.
• Optional Abrasion Drums: Provides the choice to use abrasion drums for additional stress testing of samples.
• User-Friendly Interface: Features a color-changing LCD screen with click wheel navigation for easy menu operation.
• Integrated Report Printer: Generates detailed test and calibration reports, optimizing laboratory space.
Advantages:
• High Capacity: Tests up to six samples simultaneously, ideal for high-volume testing environments.
• Efficient Operation: Drums are easily accessible for loading and cleaning; the optional discharge opening allows for simplified sample handling.
• Detailed Reporting: Comprehensive result reports with automatic weight loss calculations.
• Flexible Testing: Supports both time-based and revolution-based testing with adjustable drum rotation speeds.
• Advanced User Management: Supports up to 32 users with different access levels and up to 256 test methods.
Technical Specifications:
• Drum Rotation Speed: 15–100 rpm (±1 rpm accuracy).
• Testing Time/Rotations: Adjustable from 2 to 9999 seconds or revolutions.
• Instrument Dimensions: 50cm x 75cm x 47cm (W x D x H).
• Weight: 30 kg (net), 40 kg (gross).
• Power: 110/230V, 50/60Hz.
Included in the Package:
• Six Plexiglas friability drums (optional anti-static coating).
• Five rolls of printer paper for the integrated printer.
• Comprehensive documentation, including IQ/OQ validation documents and user manual.
The PTF 600 is designed for laboratories requiring high-capacity, versatile friability testing with robust features and advanced reporting capabilities.
