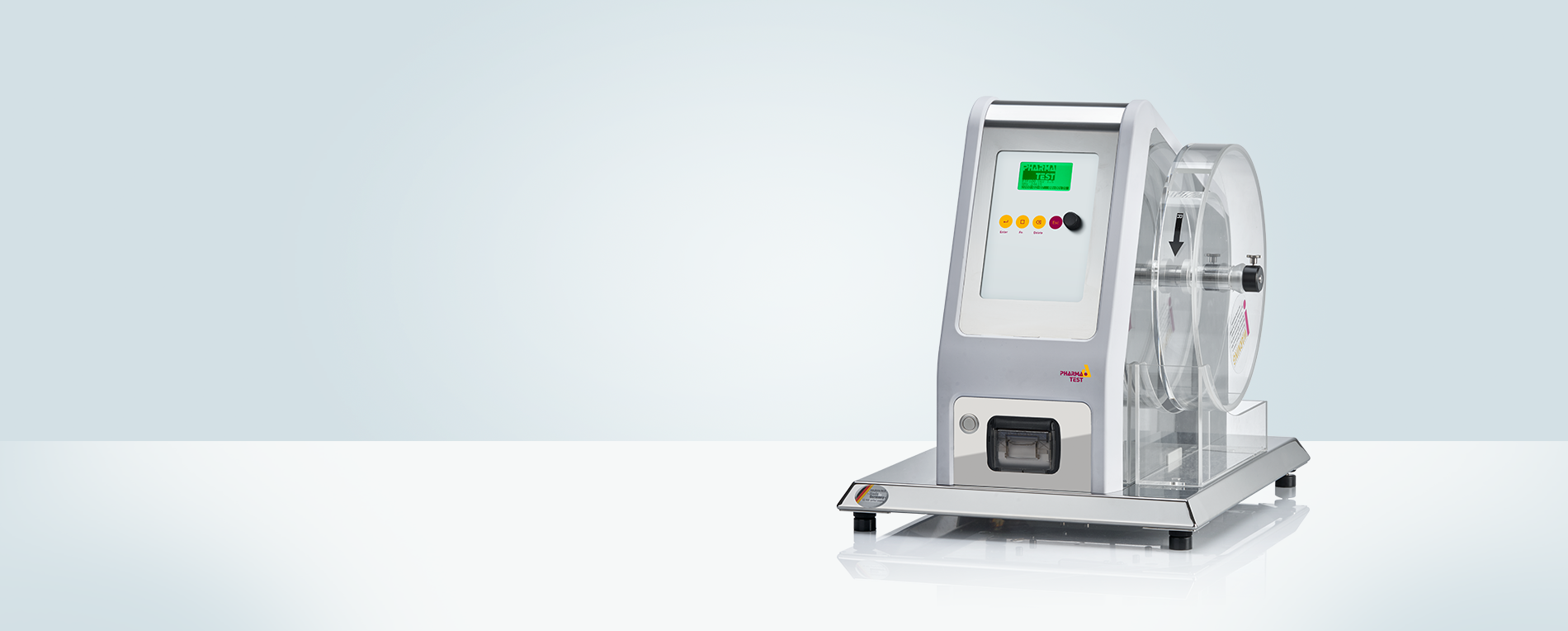

PTF 100
Single Drum Tablet Friability Test Instrument
The PTF 100 is a fully compliant friability and abrasion testing instrument designed to assess the mechanical strength of tablets in accordance with USP <1216>, EP <2.9.7>, and JP <14> Pharmacopoeias. It features automated sample discharge and optional connectivity to an analytical balance for weight measurement.
Key Features:
• Compliance with USP, EP, and JP standards.
• Automated sample discharge for ease of use.
• LCD screen with color-changing backlight for test status display.
• Integrated or external printer options for test result documentation.
• USB port for data storage, method copying, and firmware updates.
• Optional 10-degree angle stand for testing larger tablets.
• Adjustable speed (15–100 rpm) and time or revolution-based testing modes.
• Programmable qualification intervals and dedicated calibration programs.
Advantages:
• User-friendly design with easy drum access for loading and cleaning.
• Flexible operation modes (time-based or revolution-based).
• Detailed result reports, including weight loss calculations, to monitor tablet durability.
• High storage capacity for up to 256 test methods and 32 user profiles.
• Compact design with optional integrated printer to save laboratory space.
Technical Specifications:
• Drum Rotation Speed: 15–100 rpm (±1 rpm accuracy).
• Testing Time/Rotations: Adjustable from 2 to 9999 seconds or revolutions.
• Instrument Dimensions: 50cm x 42cm x 47cm (W x D x H).
• Weight: 16 kg (net), 21 kg (gross).
• Power: 110/230V, 50/60Hz.
Included in the Package:
• One Plexiglas friability drum (optional anti-static coating).
• Comprehensive documentation including IQ/OQ validation documents and user manual.
This instrument provides reliable and accurate tablet friability testing with advanced features for improved efficiency in the laboratory.
