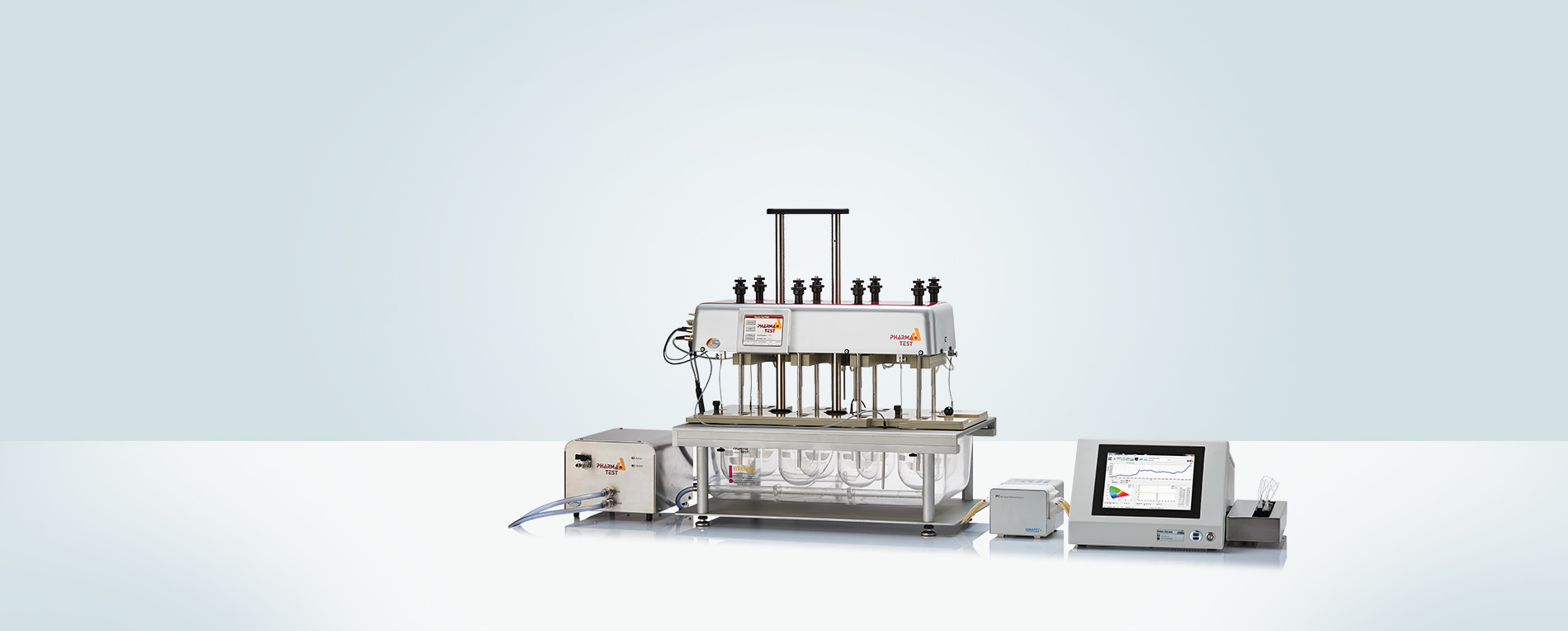

ADS-L 820
Online automated dissolution testing system with 8 position bath
Introducing the ADS-L 820 from Pharma Test – a cutting-edge, fully automated dissolution system designed to streamline your laboratory processes and ensure high-precision measurements. This state-of-the-art system combines advanced hardware, intuitive software, and high-quality components to offer an unparalleled dissolution testing experience.
Key Components and Features
PTWS 820D Dissolution Bath
• 8-Position Configuration: The PTWS 820D features an 8-position dissolution bath arranged in a 4+4 configuration, ensuring efficient sample processing.
• Motorized Drive: The upper drive is motorized and electronically controlled, allowing for programmable upper and lower positions for cleaning and working, respectively.
• Temperature Control: The bath includes an automated temperature check and logging at all sampling times, maintaining precise thermal conditions.
• User-Friendly Design: It offers easy access for tool changes and cleaning, alongside features like staggered start capability, low evaporation sealing covers, and a removable water bath for convenient maintenance.
TIDAS® L UV/VIS DAD Spectrometer
• High-Speed Measurement: Capable of measuring complete spectra in as little as 8 seconds, this spectrometer provides rapid and reliable data.
• Spectral Range: The TIDAS® L covers a wavelength range of 190 – 1100 nm with a spectral resolution of ≤ 2 nm, ensuring detailed analysis.
• E-ink Display: An additional E-ink display shows vital information such as calibration dates, ensuring you are always up-to-date with maintenance schedules.
• Robust Design: Featuring solarization-resistant fiber optic cables and no moving parts in the light path, it offers high stability and reproducibility.
IPC Multichannel Peristaltic Pump
• Efficient Media Transfer: This pump is designed for online dissolution measurements, transferring media in a closed loop from the vessel to the spectrometer and back, preventing media loss.
• Adjustable Speed: The IPC pump offers adjustable speeds from 2.5 to 50 rpm, allowing for precise control over the dissolution process.
WinDiss ARGUS Software
• Comprehensive Data Management: WinDiss ARGUS simplifies data acquisition, management, processing, and reporting. It is designed for both occasional and frequent users, making dissolution testing more productive and efficient.
• Regulatory Compliance: The software is 21 CFR Part 11 compliant, ensuring data security and regulatory adherence.
• Intuitive Interface: With user-friendly wizards and customizable templates, it allows for easy setup and operation, enhancing laboratory productivity.
High-Quality Components
• Flowthrough Cuvettes: Made from high-quality materials with pathlength tolerances of ±0.005 cm, these cuvettes are designed for accurate dissolution testing.
• Inert Tubing: The system uses PTFE tubing, suitable for most APIs, ensuring compatibility and durability.
Advantages
• Automation and Efficiency: The system offers fully automated sampling, measuring, and result calculation, reducing manual intervention and optimizing laboratory workflows.
• No Media Loss: Thanks to its closed-loop design, the system prevents media loss during testing.
• Full System Responsibility: Pharma Test provides comprehensive support, including hardware IQ/OQ documentation free of charge.
Technical Specifications
Dissolution Bath: PTWS 820D, 8-position
• Spectrometer: TIDAS® L UV/VIS diode-array with 8-channel cell changer
• Wavelength Range: 190 – 1100 nm
• Pump: IPC 8-channel peristaltic pump, adjustable speed 2.5 – 50 rpm
• Software: WinDiss ARGUS, 21 CFR Part 11 compliant
The ADS-L 820 from Pharma Test is the ideal solution for laboratories seeking reliable, efficient, and fully automated dissolution testing. With its advanced features and user-friendly design, it promises to enhance productivity and ensure high-quality results.
For more information, please contact us.
