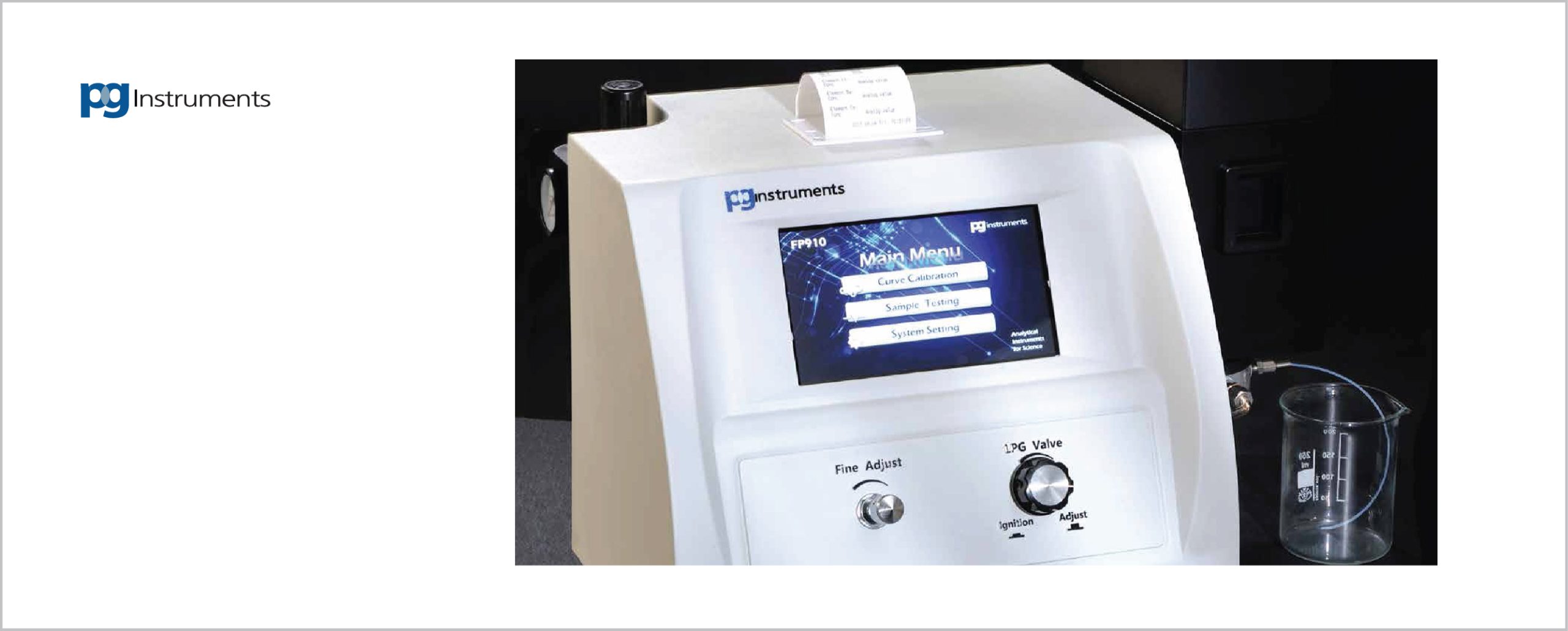

FP910 Flame Photometer
Digital, Microprocessor-Controlled Multi-Element Flame Analysis
The FP910 Flame Photometer from PG Instruments is a modern, microprocessor-controlled digital instrument designed for rapid and reliable determination of alkali and alkaline earth metals. Built for clinical, industrial, agricultural, food, petrochemical and educational laboratories, the FP910 delivers fast, precise and accurate analysis of up to five elements in a single aspiration.
Low-temperature flame photometry provides a dependable and convenient technique for routine chemical analysis, and the FP910 combines performance, safety, and ease of use in one compact system.
Available Models
Two configurations are available:
• FP910-4 – Sodium (Na), Potassium (K), Calcium (Ca), Lithium (Li)
• FP910-5 – Sodium (Na), Potassium (K), Calcium (Ca), Lithium (Li), Barium (Ba)
Key Features & Functions
• Simultaneous analysis of up to 5 elements in one aspiration
• Microprocessor-controlled operation
• Automatic optical filter selection
• 7-inch colour LCD touch screen
• Electronic ignition system
• Flame-out safety protection sensor
• Up to 12-point calibration capability
• First and second order calibration curve fitting
• Multiple calibration curve storage
• Sample data storage
• Direct concentration display (ppm, mmol/L, meq/L, etc.)
• Integral thermal printer
• USB interface for PC connection (optional FPWin software)
• Operates on LPG, propane-butane, or natural gas
Touch Screen Technology
The FP910 features a 7-inch colour LCD touch screen, providing:
• Colour graphical calibration curves
• Simultaneous multi-element analytical results
• Selection of elements and concentration units
• Automatic calculation of curve coefficients
• Language selection (English, Turkish, Portuguese, Polish, Russian)
• Alpha-numeric on-screen keyboard
• Numeric keypad for calibration entry
The intuitive interface simplifies parameter selection and data management, reducing operator training time and increasing productivity.
Applications
The FP910 is suitable for a wide range of applications including:
• Soil & agricultural analysis
• Biological and chemical fluids
• Petrochemical analysis
• Food & beverage testing
• Cement, minerals & glass analysis
• Clinical laboratories
• Educational laboratories
Analytical Performance

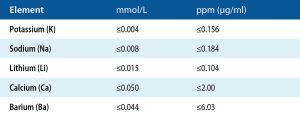

Linear Error

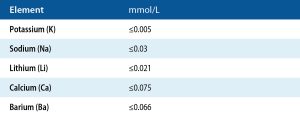

Analytical Measuring Range
• High Range: 0 – 5 ppm
• Medium Range: 0 – 30 ppm
• Low Range: 0 – 150 ppm

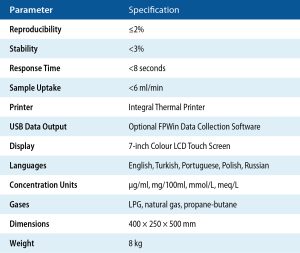

General Specifications
Air Compressor Specification (Optional)
Why Choose the FP910?
• Multi-element analysis in a single aspiration
• Fast response time (<8 seconds)
• Compact, lightweight design (8 kg)
• User-friendly touchscreen operation
• Built-in printer for immediate documentation
• Flexible gas operation
• Ideal for routine and high-throughput laboratories
• Suitable for clinical, industrial, and educational environments
