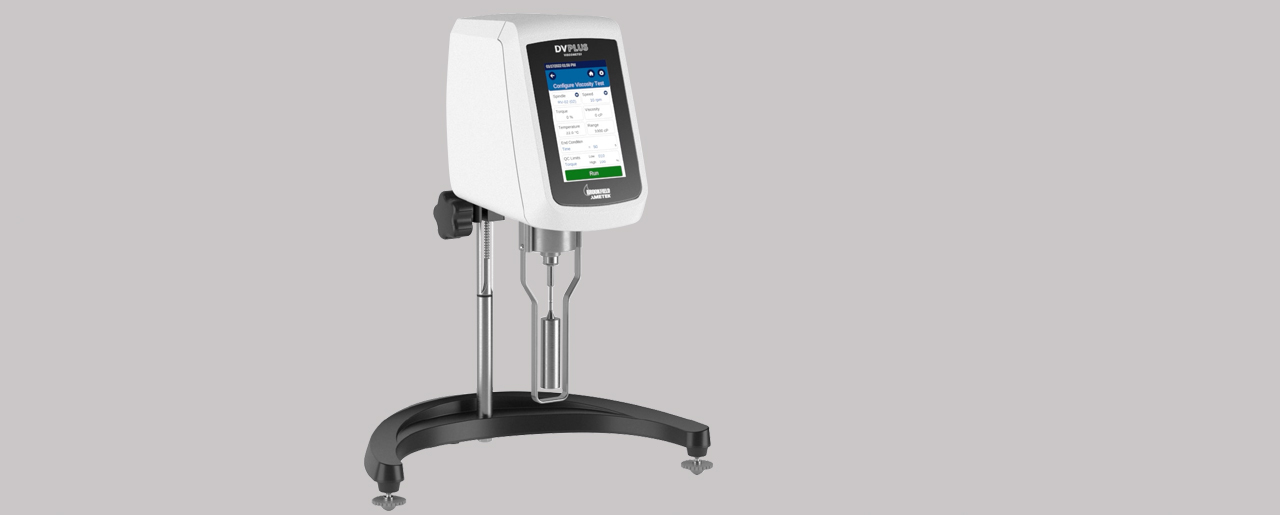

DVPlus Viscometer
5-inch Color Display Screen
New User Interface
• Enhanced control features
• Real-time torque indicator
• Multilingual software support
• Accuracy ±1.0%
• Repeatability ±0.2%
• Viscosity measurement range: 1 – 6M cP (mPa·s)
• Speed range: 1 – 200 RPM
• 740 steps for speed adjustment
• Temperature offset capability to ±5°C
Displayed Information:
• Viscosity (cP, mPa·s, P, Pa·s)
• Temperature (in °C or °F)
• Shear rate/stress
• Torque (% , mNm, Dyne·cm)
• Spindle Speed
• Step Program Status
Automatic Range Calculation
• Full-Scale Range (FSR) at 100%
• Maximum Viscosity measured with Spindle/Speed Combination
USB Interface
• For use with the DVPlus Connect app
• Convenient Bubble Level
Included with the Instrument
• 4 spindles
• Spindle Guard Leg
• Lab Stand (Model G)
• Carrying Case
Optional Features
• RTD Temperature Probe (DVP-94Y)
• DVPlus Connect App (Optional): A time-saving app that monitors and records test data
DVPlus Connect App Features
• Real-time test monitoring
• Data display and storage
• USB and Bluetooth* connectivity options
• Available for Windows (iOS and Android coming soon)
• Print via PC
Viscometer Types for Different Viscosities
• LV: For low-viscosity materials such as inks, oils, and solvents.
• RV: For medium-viscosity materials such as creams, food, and paints.
• HA: For high-viscosity materials such as gels, chocolate, and epoxies.
• HB: For very high-viscosity materials such as asphalt, caulking compounds, and molasses.
• Note: Additional special springs are available upon request.
Specifications
Minimum ranges can be extended to as low as 1 cP with the use of Brookfield Accessories
** Standard torque range values
M = 1 million
cP = Centipoise
mPa·s = MilliPascal·seconds
