VD Series

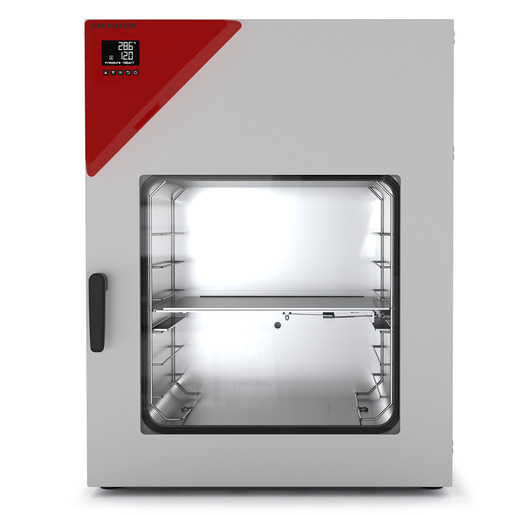

Introducing the BINDER VD Series Vacuum Drying Chambers

The BINDER VD Series Vacuum Drying Chambers are the perfect solution for laboratories and industries requiring precise and gentle drying of non-flammable solvents. These chambers offer exceptional performance and reliability, making them ideal for applications in various fields including cell analysis, genomics, industrial testing, and microbiology.

Key Features:

1. Temperature Control: The VD Series supports a temperature range from +9°C above ambient to 220°C. This precise temperature control ensures optimal drying conditions for sensitive materials​
2. Uniformity and Stability: With a temperature uniformity of ±1.2 K at 100°C and minimal fluctuation of ±0.1 K, the VD chambers guarantee consistent drying results​
3. Rapid Heating: The chambers are designed for efficient heating, reaching 100°C in just 80 minutes, ensuring quick processing times​ ​.
4. Vacuum Efficiency: The VD Series features a low leakage rate of 0.01 bar/h, maintaining a stable vacuum environment crucial for effective drying​ ​.

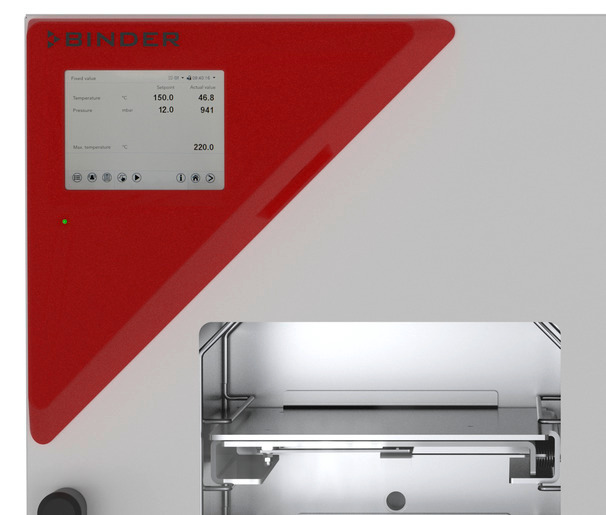

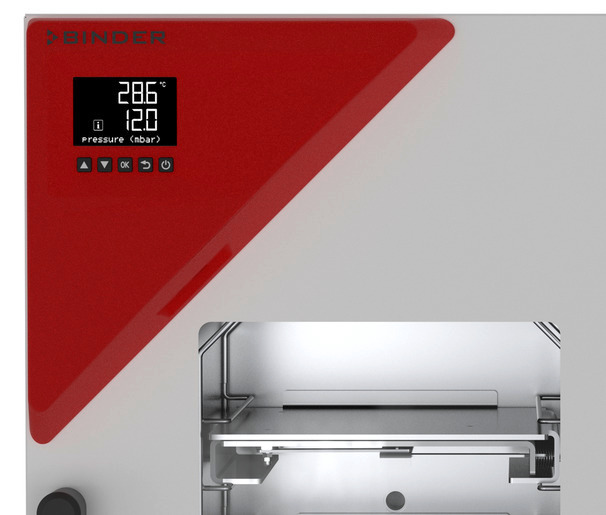

5. Digital Control: Equipped with a digital display for pressure and temperature, and program-controlled drying monitoring with automatic ventilation, the VD Series offers user-friendly operation and precise control​ ​.

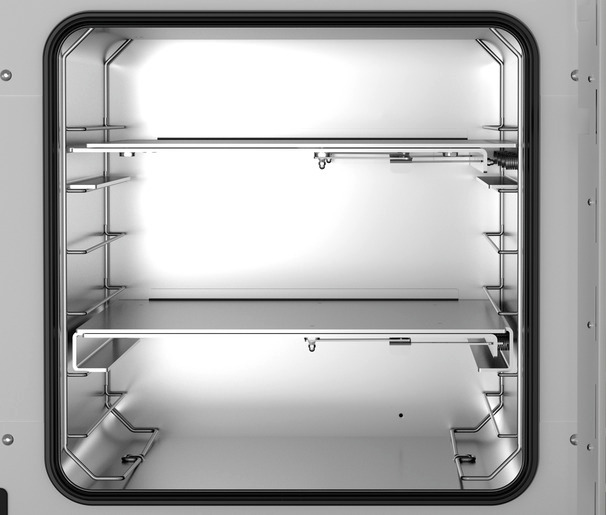

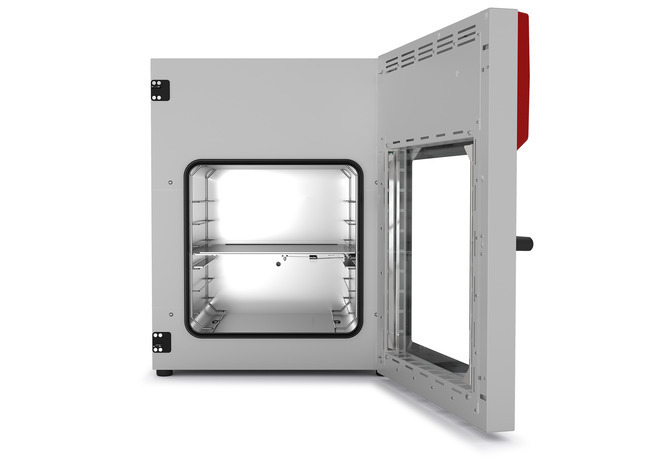

6. Robust Construction: Each chamber includes an aluminum expansion rack for optimal heat transfer and a shatterproof, spring-mounted safety glass panel for added safety​ .

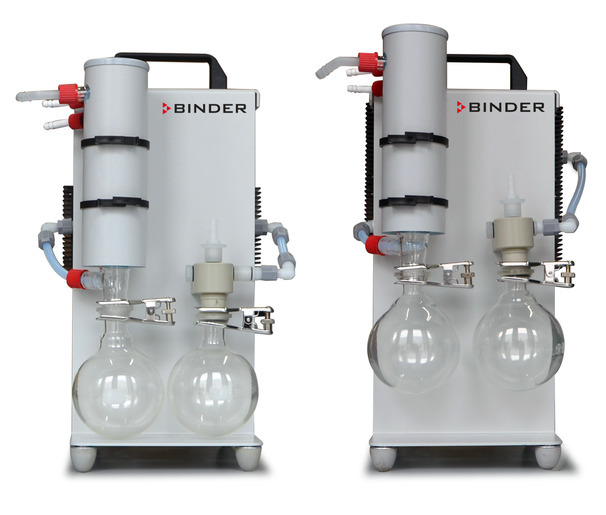

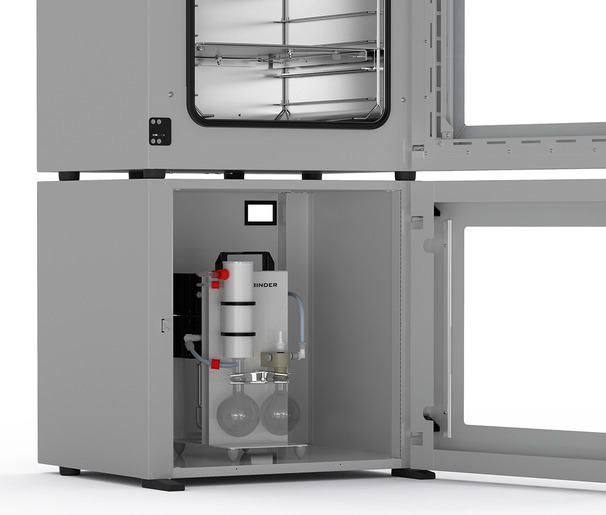

7. Modular System: The VD chambers can be paired with optional vacuum pumps and pump chambers to form a complete modular system tailored to specific needs​ .

Specifications:

• Interior Volume:
  • VD 23: 24 L
  • VD 56: 55 L
  • VD 115: 119 L​ ​
• Power Requirements: Operating on 200-230 V or 100-120 V with a power frequency of 50/60 Hz and nominal power ranging from 0.9 kW to 1.6 kW depending on the model​ .
• Max Load: Each rack can hold up to 20 kg, with total permitted load varying between models (e.g., 50 kg for VD 23, 60 kg for VD 56, and 70 kg for VD 115)​

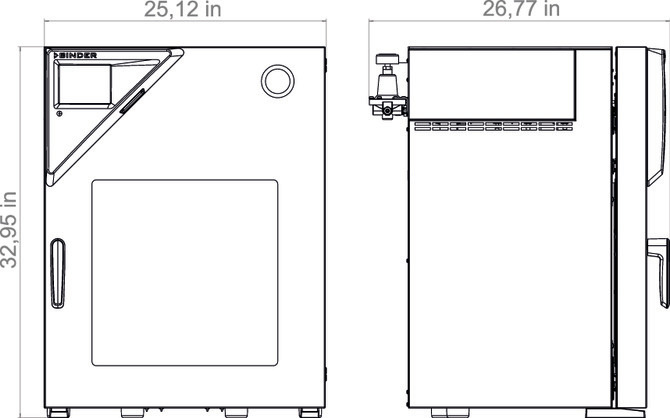

• Dimensions:
  • VD 23: Width 523 mm, Height 698 mm, Depth 413 mm
  • VD 56: Width 638 mm, Height 815 mm, Depth 461 mm

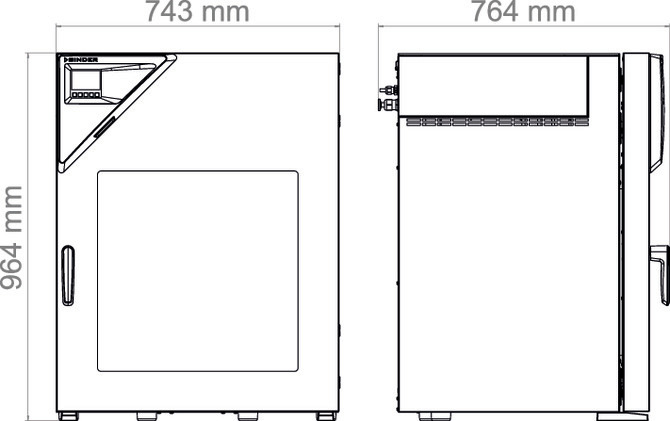

  • VD 115: Width 743 mm, Height 942 mm, Depth 581 mm​

Applications:

The BINDER VD Series is utilized in diverse applications such as drying jewelry, quality testing in medical devices, and even in smartphone production. Its ability to provide gentle and fast drying makes it a versatile tool in any laboratory setting​.

Why Choose BINDER VD Series?

With its advanced features, precise control, and robust construction, the BINDER VD Series Vacuum Drying Chambers offer unparalleled performance and reliability. Whether for research, industrial testing, or production, these chambers ensure that drying processes are efficient, safe, and consistent.

For more information and to purchase, contact our sales team today.

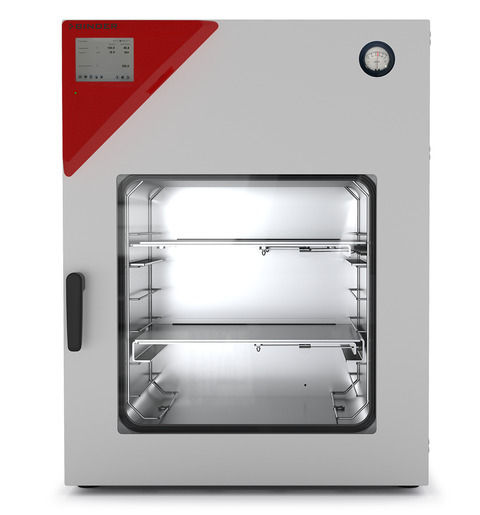

VDL Series

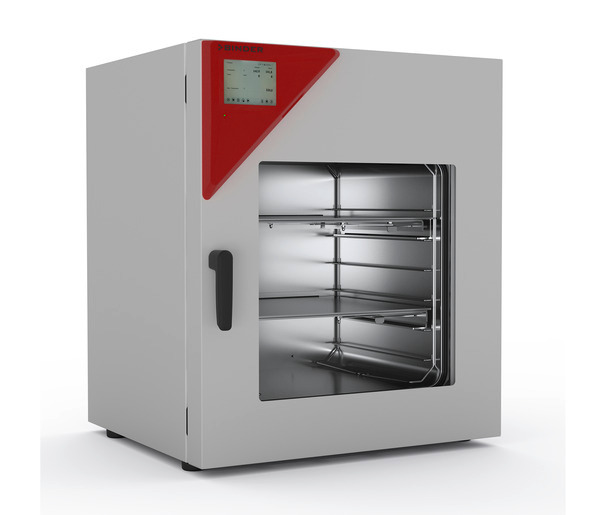

Introducing the BINDER VDL Series Vacuum Drying Chambers

The BINDER VDL Series Vacuum Drying Chambers are engineered for the safe drying of flammable solvents, offering unparalleled safety and performance for laboratory and industrial applications. These chambers comply with ATEX guidelines, ensuring maximum safety during the drying process.

Key Features:

1. Explosion Protection: Certified according to ATEX directive 2014/34/EU, the VDL Series is designed to safely handle flammable solvents with its explosion-protected units​
2. Temperature Range: The chambers operate from +9°C above ambient temperature to 110°C, providing a controlled environment for sensitive drying applications​
3. Safety Measures: Equipped with shatterproof, spring-mounted safety glass panels and an automatic pressure control device for heating activation below 100 mbar, these chambers prioritize user safety​
4. Efficient Drying: Fast, gentle drying is achieved through optimal heat transfer provided by large thermal conducting plates, ensuring even drying without compromising sample integrity​
5. Digital Control: Intuitive touchscreen controllers offer graphical displays for pressure and temperature, enhancing user experience with precise and easy operation​

Specifications:

• Models and Capacities:
  • VDL 23:
    • Interior Volume: 24 L
    • Dimensions (WxHxD): 523 x 698 x 413 mm
    • Net Weight: 72 kg
    • Power: 0.9 kW
    • Permitted Load: 50 kg
    • Heating Time to 100°C: 140 min​
  • VDL 56:
    • Interior Volume: 55 L
    • Dimensions (WxHxD): 638 x 815 x 461 mm
    • Net Weight: 104 kg
    • Power: 1.4 kW
    • Permitted Load: 60 kg
    • Heating Time to 100°C: 140 min​
  • VDL 115:
    • Interior Volume: 119 L
    • Dimensions (WxHxD): 743 x 942 x 581 mm
    • Net Weight: 140 kg
    • Power: 2.4 kW
    • Permitted Load: 70 kg​

Applications:

The VDL Series is ideal for industries and laboratories that require safe and efficient drying of flammable solvents. Applications include quality testing in the chemical and pharmaceutical industries, electronics manufacturing, and any process where safety and precision are paramount.

Why Choose BINDER VDL Series?

The BINDER VDL Series combines robust safety features with precise drying capabilities, making it a top choice for handling flammable solvents. Its explosion-proof design, efficient drying technology, and user-friendly controls ensure reliable performance and safety in demanding environments.

For more detailed information and to purchase, please contact our sales team.
