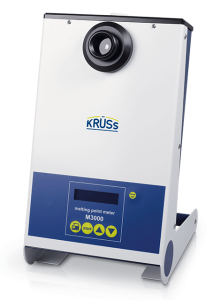

A.KRÜSS M3000 Melting Point Meter
Semi-Automatic Precision for Fast & Reliable Melting Point Determination
The A.KRÜSS M3000 Melting Point Meter is a semi-automatic instrument designed for the rapid and precise determination of melting points in powdery substances, accommodating up to three samples simultaneously. With a measurement range of 30°C to 360°C, it is an ideal solution for quality control and research applications across various industries, including pharmaceuticals, chemicals, and food production.
This compact and user-friendly instrument ensures reliable results while enhancing laboratory efficiency, offering high accuracy, rapid heating, and intuitive operation.
Why Choose the A.KRÜSS M3000?
✔ Simultaneous Analysis of Three Samples – Increases productivity with three capillary intakes for parallel measurements
✔ 10x Magnification for Clear Observation – Ensures accurate visual detection of the melting process
✔ Fast Heating & Cooling System – Reduces waiting times with a high preheating rate and integrated fan cooling
✔ User-Friendly LCD Display & Keypad – Simplifies operation with an intuitive interface
✔ Reliable Data Output – Equipped with an RS-232 interface for easy data transfer and documentation
Technical Specifications
Measurement & Heating
Feature |
Specification |
|---|---|
| Measurement Range | 30–360 °C |
| Measurement Accuracy | ±0.3 °C (30–200 °C); ±0.5 °C (200–360 °C) |
| Resolution | 0.1 °C |
| Preheating Rate | To 200 °C: ~4.0 min; To 300 °C: ~8.0 min |
| Heating Rates | 1, 2, 3, 4, 5 °C/min |
Sample Handling & Display
Feature |
Specification |
|---|---|
| Observation Lens | 10x magnification |
| Number of Capillary Intakes | 3 (simultaneous sample measurement) |
| Capillary Diameter | 1.4 mm |
| Display | LCD screen with easy-to-read measurement data |
Connectivity & Power
Feature |
Specification |
|---|---|
| Interfaces | RS-232 (for data transfer to printer or PC) |
| Power Supply | 90–264 V |
| Dimensions (W × H × D) | 210 mm × 360 mm × 230 mm |
| Weight | 4.3 kg |
Applications
The A.KRÜSS M3000 Melting Point Meter is a versatile tool for laboratories in various industries:
- Pharmaceutical Industry – Ensures purity and consistency in active pharmaceutical ingredients (APIs)
- Chemical Industry – Used for substance identification and quality control
- Food Industry – Helps analyze fats and oils to maintain quality standards
- Research Institutes – Supports material development and academic research
Conclusion
The A.KRÜSS M3000 Melting Point Meter is a powerful, semi-automatic instrument that delivers high accuracy, efficiency, and ease of use. With its fast heating rates, simultaneous sample capability, and precision optics, it is the perfect choice for laboratories needing reliable melting point analysis.
🔹 Enhance your lab’s efficiency with the A.KRÜSS M3000 – the trusted solution for accurate and reproducible melting point determination!

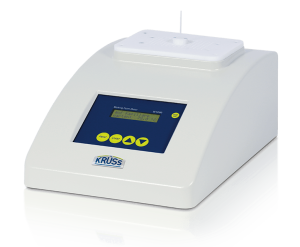

A.KRÜSS M5000 Melting Point Meter
Fully Automatic Precision for Rapid and Reliable Melting Point Determination
The A.KRÜSS M5000 Melting Point Meter is a fully automatic instrument designed for the efficient and precise determination of melting points in powdery substances, accommodating samples with melting points up to 400 °C. Its advanced automation ensures objective and reproducible results, making it an indispensable tool for quality control and research laboratories across various industries.
Why Choose the A.KRÜSS M5000?
✔ Fully Automatic Measurement – Eliminates manual intervention, providing consistent and objective results
✔ High-Speed Performance – Features a high preheating rate and integrated fan cooling for rapid measurements
✔ User-Friendly Interface – Equipped with an LCD display for clear visualization of all critical data
✔ Compact and Efficient Design – Occupies minimal bench space while delivering maximum functionality
✔ Reliable Data Export – Includes an RS-232 interface for seamless data transfer to printers or computers
Technical Specifications
Measurement & Heating
Feature |
Specification |
|---|---|
| Measurement Range | 25–400 °C |
| Measurement Accuracy | ±0.3 °C (25–200 °C); ±0.5 °C (200–400 °C) |
| Resolution | 0.1 °C |
| Preheating Rate | To 200 °C: ~4.0 min; To 300 °C: ~9.0 min |
| Heating Rates | 1, 2, 3, 4, 5 °C/min |
Sample Handling & Display
Feature |
Specification |
|---|---|
| Number of Capillary Intakes | 1 |
| Capillary Diameter | 1.4 mm |
| Display | LCD screen with clear readout of measurement data |
Connectivity & Power
Feature |
Specification |
|---|---|
| Interfaces | RS-232 (for data export to printer or PC) |
| Power Supply | 90–264 V |
| Dimensions (W × H × D) | 220 mm × 150 mm × 340 mm |
| Weight | 4.1 kg |
Applications
The M5000 is versatile and suitable for various applications, including:
- Pharmaceutical Industry – Ensuring the purity and quality of active ingredients
- Chemical Industry – Identifying substances and verifying chemical purity
- Food Industry – Analyzing fats and oils for quality assurance
- Research Laboratories – Conducting material analysis and characterization studies
Conclusion
The A.KRÜSS M5000 Melting Point Meter offers a fully automatic solution for laboratories seeking rapid, accurate, and reliable melting point determinations. Its combination of advanced features, user-friendly design, and robust performance makes it an essential instrument for enhancing laboratory productivity and ensuring precise analytical results.
