Industrial Scales - Weighing Modules
Y Series Weighing Modules
Readability [d]: 0.01 mg – 0.05 g
Maximum capacity [Max]: 50 g – 10000 g
✓ High-precision, compact weighing modules
✓ Module width: 56–127 mm
✓ Internal adjustment
✓ Protection rating: IP 43, IP 54
✓ Aluminium housing

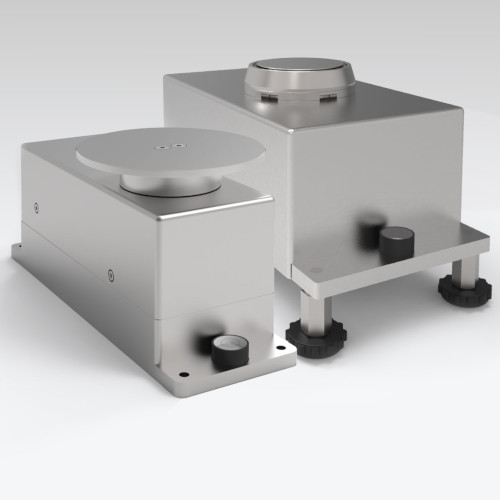

R Series Weighing Modules
Readability [d]: 0.01 mg – 0.1 g
Maximum capacity [Max]: 50 g – 10000 g
✓ Precise weighing modules with ergonomic dimensions
✓ For use in confined spaces
✓ Enable the construction of multi-track systems
✓ Module width: 25–115 mm
✓ Weighing pan dimensions Ø23–Ø100 mm
✓ Internal adjustment – R2
✓ External adjustment – R1 version
✓ Protection rating: IP 43
✓ Aluminium housing

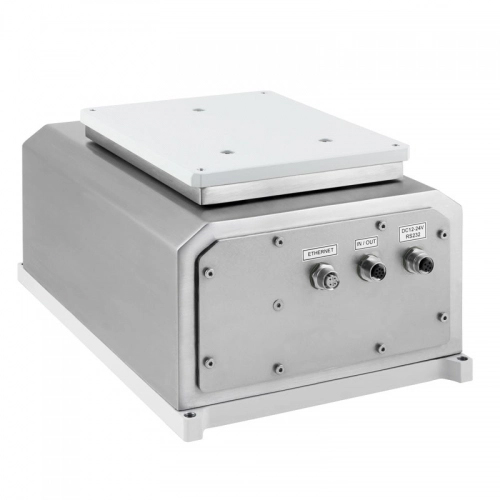

MWLH Series Weighing Modules
Readability [d]: 0.01 g – 0.1 g
Maximum capacity [Max]: 10 kg – 35 kg
✓ Measurement of large masses with high precision
✓ Designed for industrial conditions
✓ External adjustment
✓ High protection rating – IP 65
✓ Wide range of interfaces: RS232, RS485, Ethernet, 2 IN/ 2 OUT, Modbus TCP/IP, PROFIBUS, PROFINET
✓ Compatible with the PUE HY10 terminal
✓ Stainless steel housing

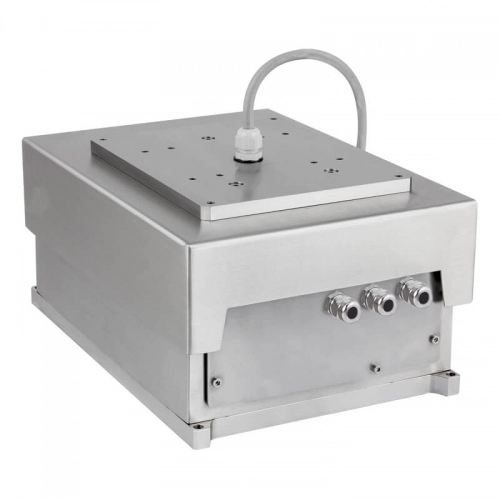

MWMH Series Weighing Modules
Readability [d]: 0.01 g – 0.1 g
Maximum capacity [Max]: 1 kg – 10 kg
✓ Preload of several kilograms – increased mechanical resistance
✓ Possibility of using a weighing pan or conveyor of your own design
✓ Can be used for fast and dynamic measurement processes
✓ Designed for operation in the most demanding industrial conditions
✓ External adjustment
✓ High protection rating – IP 65, IP 69K
✓ Interfaces: RS232, Ethernet, 2 IN/ 2 OUT
✓ Stainless steel housing
