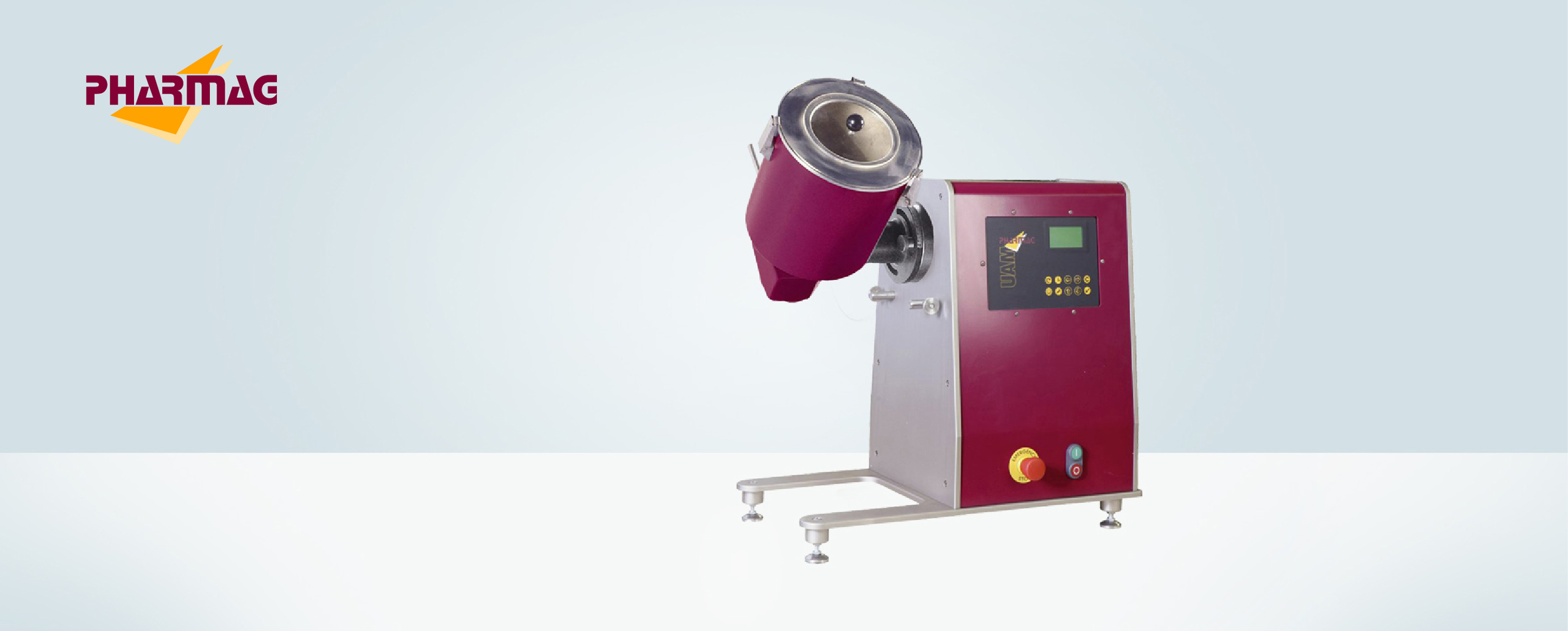

PD
Polishing drum for the polishing of coated tablets.
The PD Polishing Drum is a compact tablet-finishing unit designed for the polishing of coated tablets, pellets, and granules. Its rotating, felt-lined vessel creates a gentle frictional action that enhances the surface appearance of coated products while supporting consistent processing in R&D, pilot-scale, and small-batch applications.
Both the drum walls and vessel bottom are lined with felt to provide an all-around polishing surface throughout the available working volume. The felt components are designed for fast and straightforward replacement, helping simplify cleaning, maintenance, and product changeover.
Key Features
- Felt-lined polishing drum for coated tablets, pellets, and granules
- Felt lining on both the vessel walls and bottom for complete surface contact
- Gentle friction-based polishing action
- Transparent Plexiglas viewing window for visual process observation
- Three snap fasteners for quick and secure vessel sealing
- Easy and rapid replacement of felt-lined components
- Adjustable drum angle via the UGD Universal Gear Drive
- Smoothly adjustable rotational speed through the UAM Universal Motor Drive
- GMP-compliant and sterilizable product-contact parts
- Corrosion-resistant, medical- and food-grade contact materials

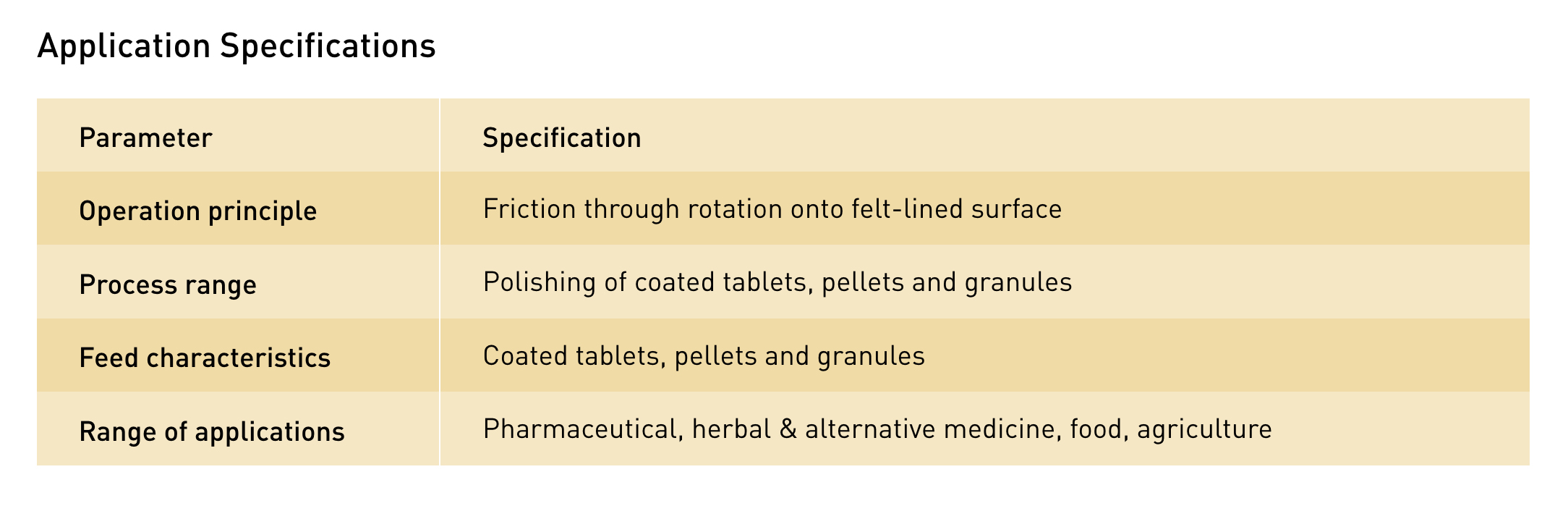

Operating Principle
The PD Polishing Drum operates by rotating coated products against the felt-lined inner surface of the vessel. This controlled frictional contact polishes the surface of tablets, pellets, or granules as they move inside the drum.
The transparent cover window allows the operator to observe the process, while the adjustable speed and operating angle help optimize the polishing action according to the product characteristics and desired finish.
Applications
The PD is suitable for:
- Polishing coated tablets
- Finishing coated pellets
- Polishing coated granules
Typical application areas include:
- Pharmaceutical manufacturing
- Herbal and alternative medicine
- Food processing
- Agriculture

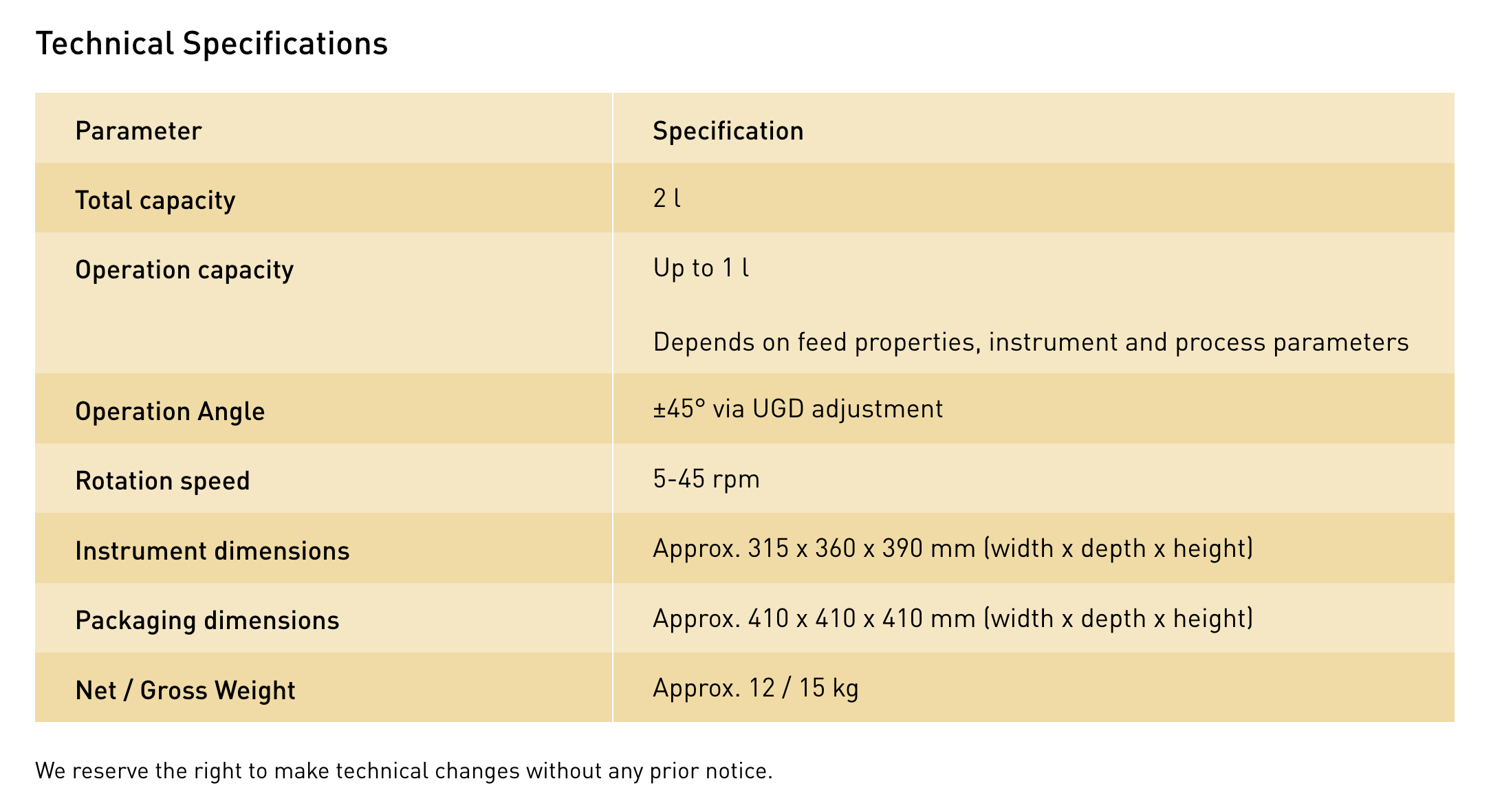

Technical Highlights
- Operating principle: friction through rotation on a felt-lined surface
- Total capacity: 2 L
- Working capacity: up to 1 L*
- Operating angle: ±45°, adjustable via UGD
- Speed range: 5–45 rpm
- Dimensions: approximately 315 × 360 × 390 mm
- Net weight: approximately 12 kg
*Actual working capacity depends on the product characteristics, equipment configuration, and selected process parameters.
Standard Scope of Supply
The standard PD configuration includes:
- PD Polishing Drum
- Plexiglas cover with viewing window
The PD Polishing Drum provides a practical and hygienic solution for improving the final appearance of coated products, combining controlled polishing performance with easy observation, simple maintenance, and flexible operating adjustment.
