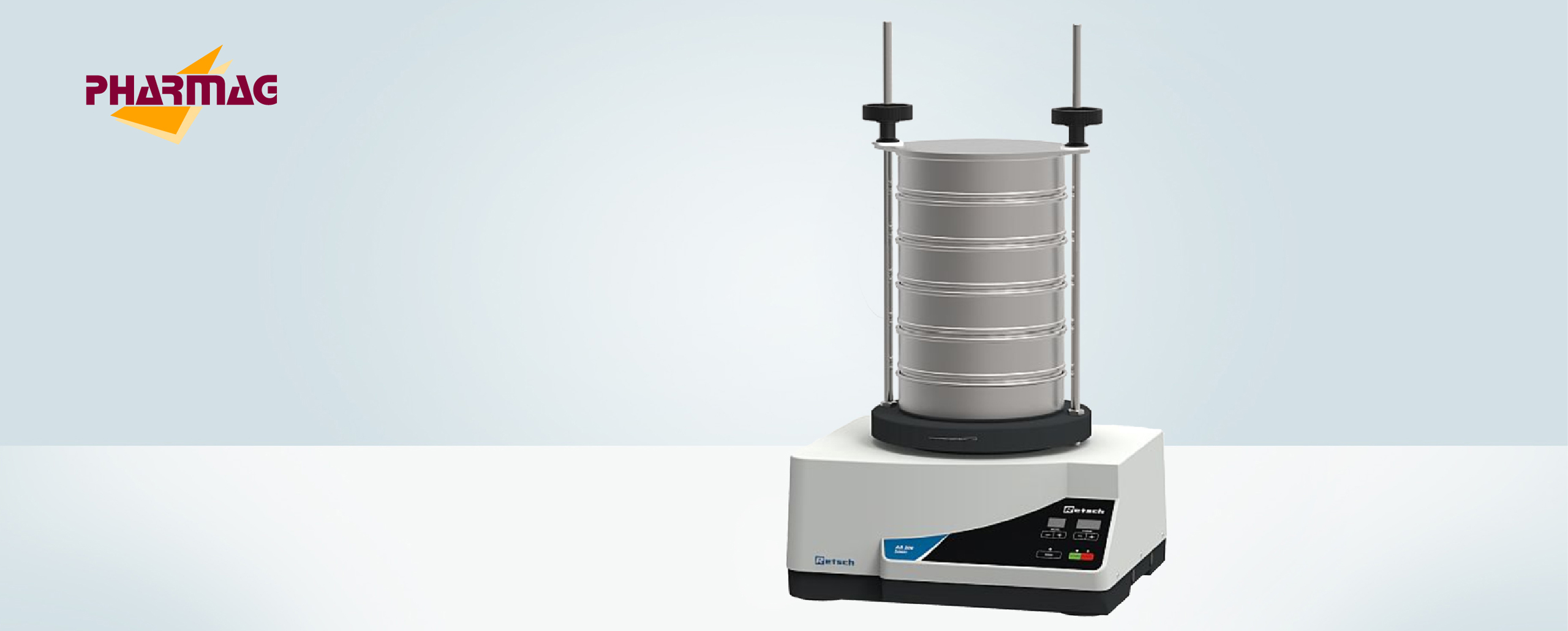

AS-200
Laboratory Sieve Shaker.
The AS-200 Basic Laboratory Sieve Shaker is a compact, high-performance system for reproducible particle-size analysis and material separation. Suitable for both dry and wet sieving, it is designed to deliver efficient and consistent results, even with short sieving times.
Using a patented electromagnetic drive, the AS-200 produces a three-dimensional throwing motion that distributes material evenly across the entire sieve surface. This motion supports effective separation, optimum utilisation of the sieve openings, and reliable particle-size classification for laboratory, R&D, and quality-control applications.
Key Features
- Laboratory sieve shaker for dry and wet sieving
- Patented electromagnetic drive system
- Three-dimensional throwing motion with angular momentum
- Uniform product distribution across the full sieve surface
- Digitally adjustable sieving time and movement
- Reproducible operating conditions for reliable analysis
- High separation efficiency with short processing times
- Smooth and low-vibration operation
- Robust, compact construction
- Compatible with commonly used laboratory test sieves
- GMP-compliant and sterilizable product-contact parts
- Corrosion-resistant, medical- and food-grade contact materials
Operating Principle
The AS-200 operates through an electromagnetic drive that creates a controlled 3D throwing motion. This movement causes the sieve stack to oscillate horizontally while also generating vertical motion and angular momentum.
As a result, the sample is distributed evenly over the sieve surface, helping particles pass through the appropriate mesh openings efficiently. The process supports accurate separation into multiple particle-size fractions.

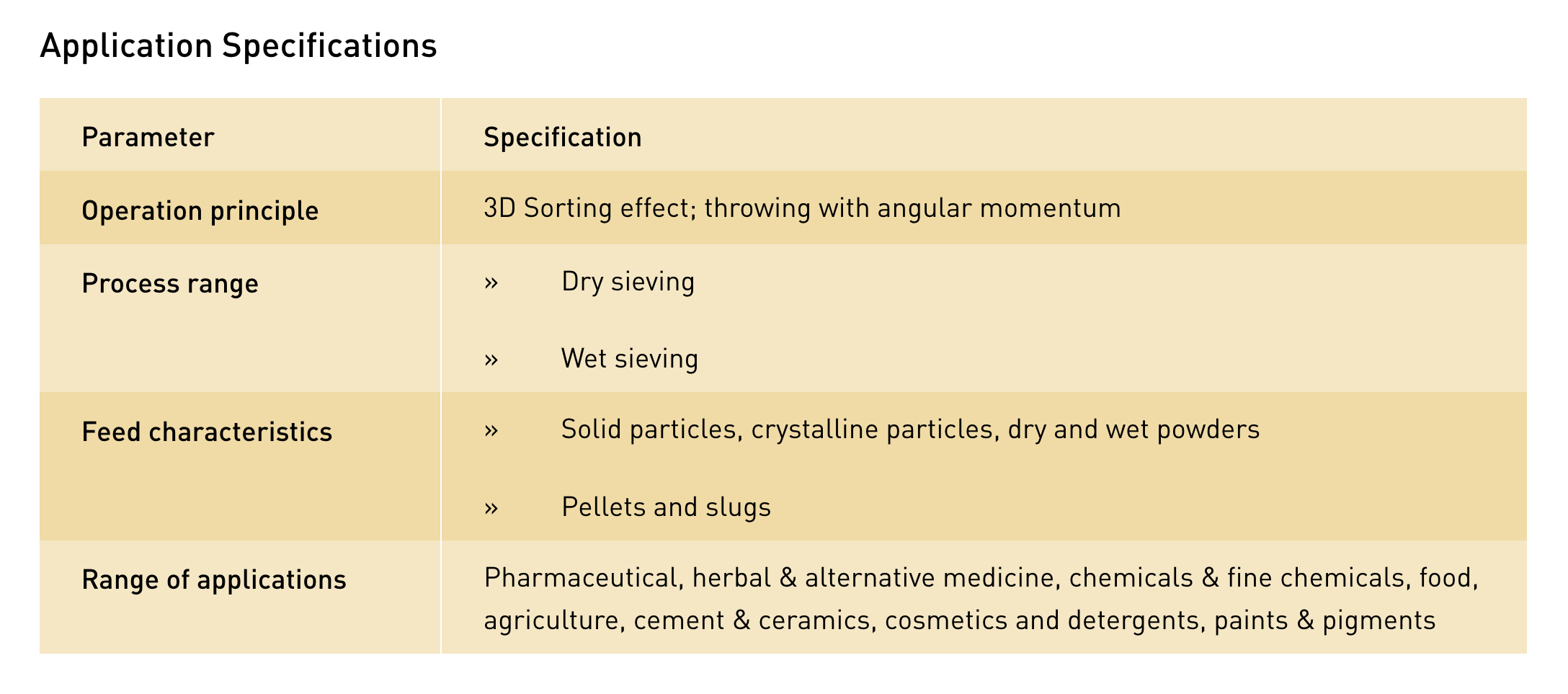

Applications
The AS-200 Basic is suitable for:
- Particle-size analysis
- Dry sieving of powders and solid particles
- Wet sieving of powders and wetted materials
- Separation and classification of crystalline particles
- Processing of pellets and slugs
- Quality control and batch verification
- Research and formulation development
Typical application areas include:
- Pharmaceutical manufacturing
- Herbal and alternative medicine
- Chemicals and fine chemicals
- Food processing
- Agriculture
- Cement and ceramics
- Cosmetics and detergents
- Paints and pigments

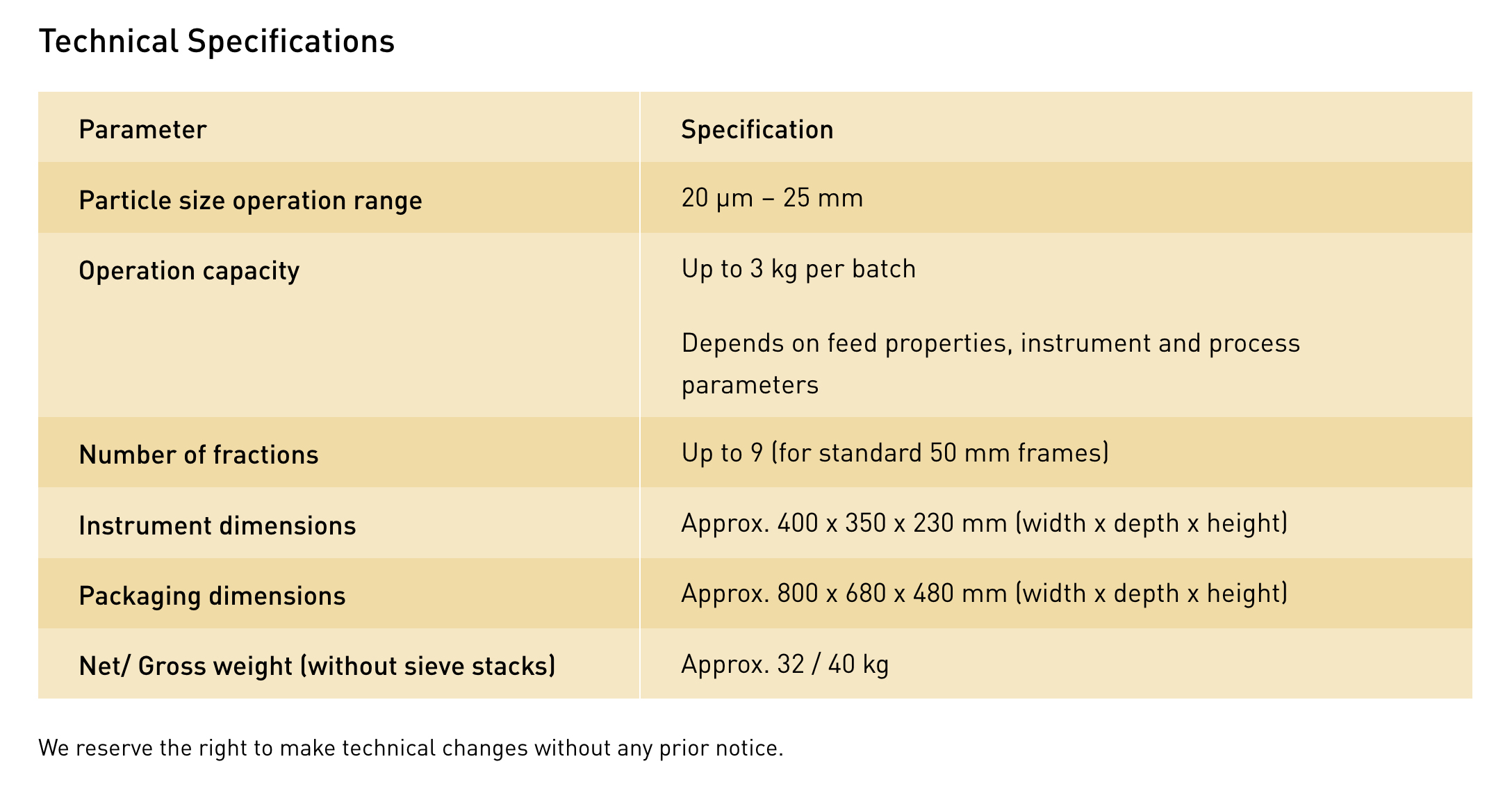

Technical Highlights
- Operating principle: 3D sorting effect through throwing motion with angular momentum
- Sieving modes: dry and wet sieving
- Particle-size range: 20 µm to 25 mm
- Batch capacity: up to 3 kg*
- Number of fractions: up to 9 with standard 50 mm sieve frames
- Dimensions: approximately 400 × 350 × 230 mm
- Net weight: approximately 32 kg, excluding sieve stacks
- Protection and standards: EC compliant; protection classes IP54 / IP20; compatible with DIN ISO 3310-1 and ASTM E11 sieve standards
*Actual capacity depends on material characteristics, sieve configuration, and selected process parameters.
Standard Scope of Supply
The standard AS-200-5 configuration includes:
- Clamping device
- Collecting pan
Available Options
- ISO 3310-1 sieve stack, 200 mm diameter × 50 mm height, including eight test sieves from 45 µm to 4 mm
- ASTM E11 sieve stack, 203 mm / 8-inch diameter × 50 mm / 2-inch height, including eight test sieves from 325 mesh to 5 mesh
- Individual ISO 3310-1 test sieves from 20 µm to 25 mm
- Individual ASTM E11 test sieves from 625 to 1 mesh
The AS-200 Basic offers a reliable and versatile solution for particle-size separation and analysis, combining efficient 3D sieving action, repeatable digital control, and flexible compatibility with standard laboratory sieve formats.
