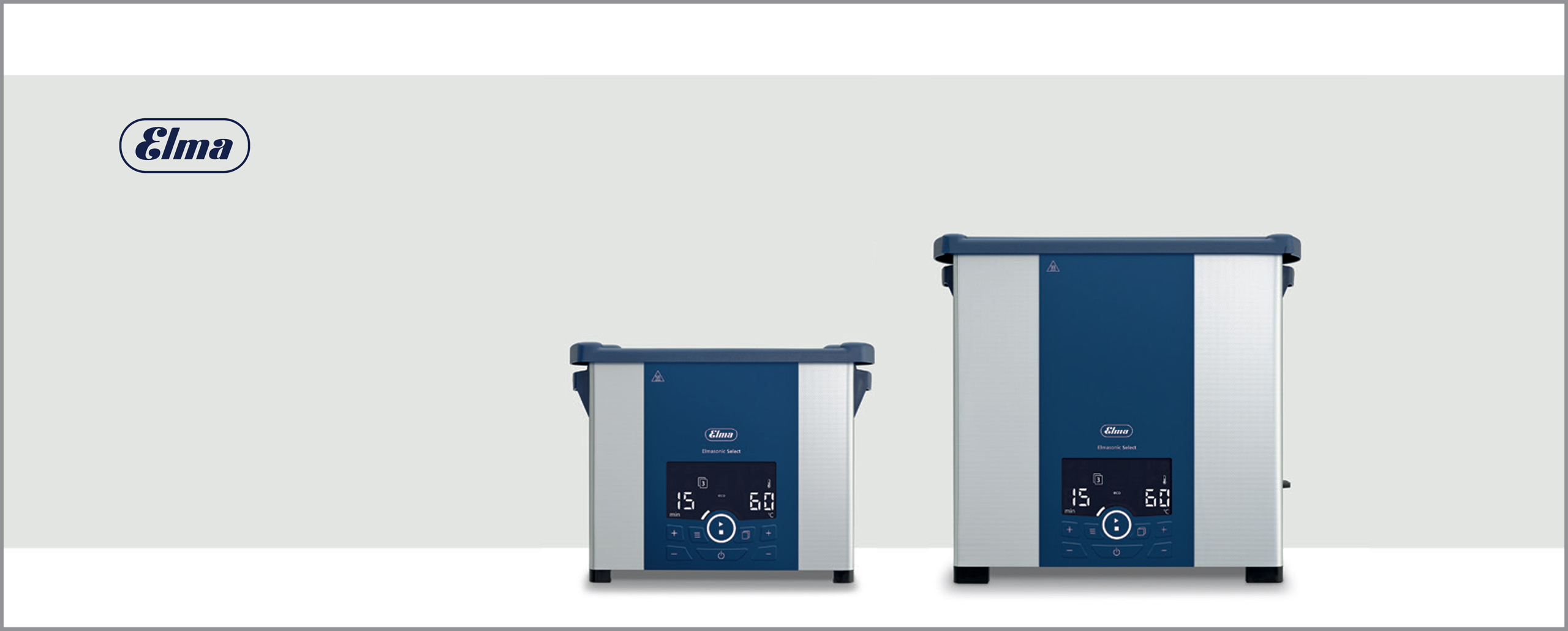

Elmasonic Select
The Elmasonic Select is a high-performance, fully programmable ultrasonic cleaning system designed for demanding industrial, laboratory, medical, and workshop applications.
It represents the next generation of Elma ultrasonic cleaners (successor to the S series), offering maximum flexibility, precision control, and reproducibility.
The system combines advanced ultrasonic technology, integrated heating, and programmable operation, allowing users to precisely tailor cleaning processes for complex and sensitive components.
Key Features
1. Fully Programmable Operation
• Up to 4 storable cleaning programs
• Each program includes:
– Ultrasonic mode
– Temperature
– Cleaning time
• Enables repeatable and standardized processes (ideal for QA and labs)
2. Five Ultrasonic Modes (Major Advantage)
The Select series stands out due to its five specialized ultrasonic modes, providing unmatched versatility:
• Dynamic Mode
– Combines pulse and sweep
– High cleaning performance with uniform distribution
• Eco Mode
– Quiet, energy-efficient operation
– Suitable for delicate parts
• Sweep Mode
– Continuous frequency variation
– Ensures homogeneous sound field
• Pulse Mode
– High-intensity bursts
– Removes stubborn contaminants
• Degas Mode
– Removes dissolved gases from liquids
– Essential for fresh solutions and lab work
3. Integrated Heating System
• Temperature range: 25 °C – 80 °C
• Programmable temperature-controlled start
• Improves removal of:
– Oils
– Grease
– Biological contaminants
4. Advanced User Interface
• Large digital display with wide viewing angle
• Shows:
– Set values
– Actual operating status
• Intuitive keypad with clear symbols
• Audible feedback and signals
5. Adjustable Cleaning Parameters
• Timer:
– 1 minute to 6 hours
• Visual & acoustic end-of-cycle signal
• Quick-start function
6. High Safety Standards
• Dry-run protection
• Automatic shut-off after 8 hours
• Temperature limit control
• Closed front panel (dust/moisture protection)
7. Flexible Design & Sizes
• Available in 11 different tank sizes
• Capacity range:
– Approx. 3 L to 90 L
• Optional:
– Drain valve (larger models)
– Modular baskets
– Noise-reduction lids
Technical Specifications
Ultrasonic System
• Frequency: 37 kHz
• Technology: cavitation-based cleaning
• Modes: 5 (Dynamic, Eco, Sweep, Pulse, Degas)
Electrical Data
• Mains voltage: 220–240 V (±10%)
• Frequency: 50/60 Hz
• Power consumption: varies by model (approx. 100 W – 2000+ W)
Heating System
• Integrated heater in all models
• Temperature range: 25–80 °C
• Thermostatic control

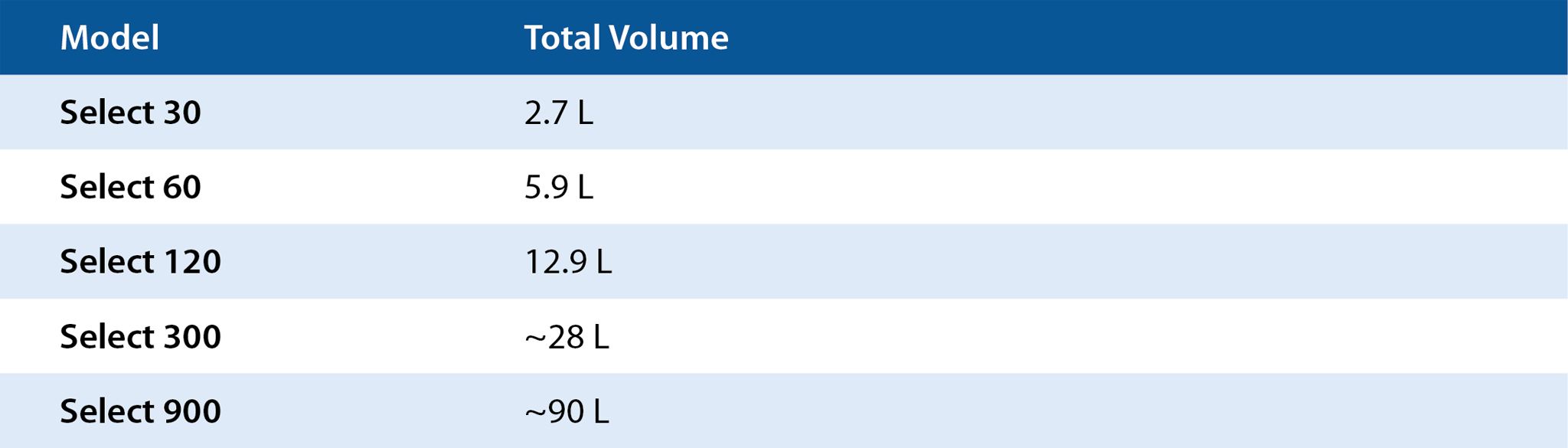

Tank Capacity
Construction
• Stainless steel tank
• Industrial-grade housing
• Compatible with Elma accessories:
– Baskets
– Holders
– Beakers
– Soundproof covers
Applications
Industrial
• Mechanical parts cleaning
• Maintenance and overhaul
Laboratory
• Sample preparation
• Degassing solvents
• Mixing and dispersion
Medical / Dental
• Instrument cleaning
Jewelry & Watchmaking
• Precision cleaning of delicate components
Advantages
• Flexibility (programmable)
• Reproducible processes (critical for labs & industry)
• Integrated heating in all models
• Advanced control interface
The Elmasonic Select series is a premium, fully configurable ultrasonic cleaning solution designed for users who require:
• Precision and repeatability
• Process customization
• High-performance cleaning across multiple applications
