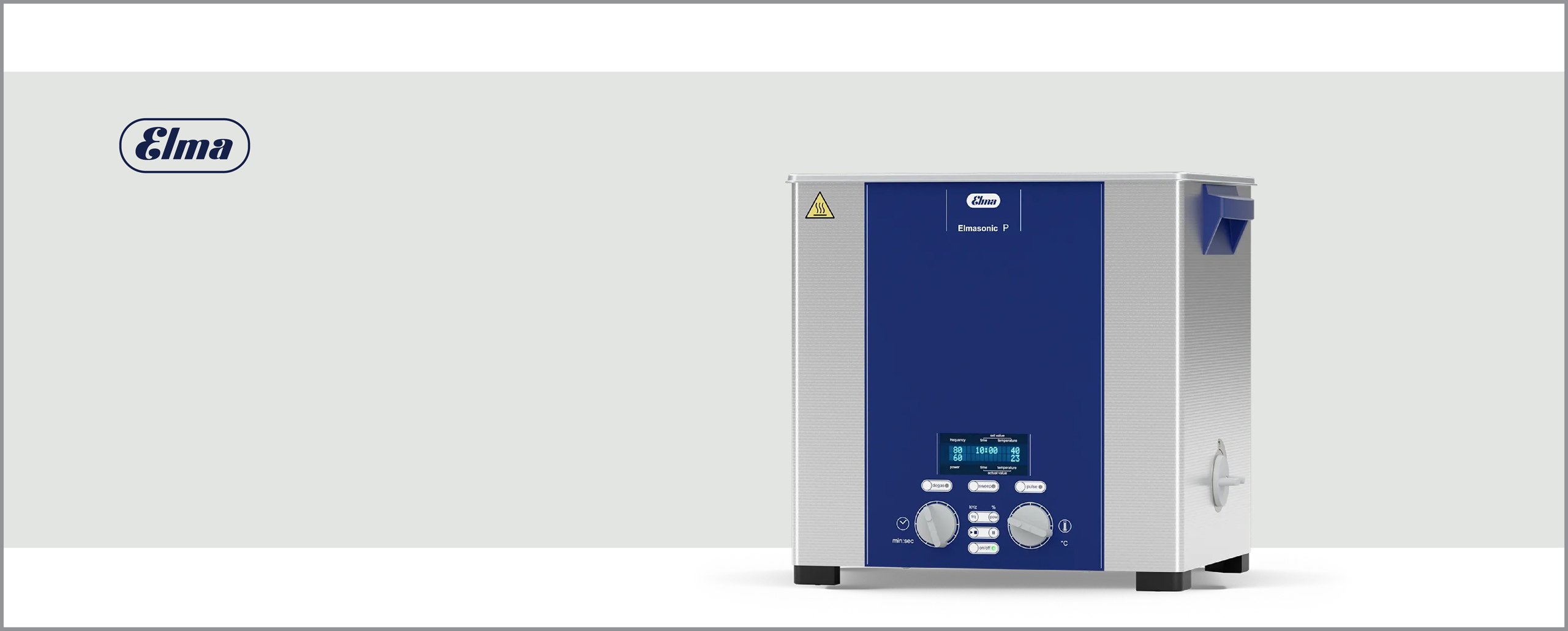

Elmasonic P
The Elmasonic P is a high-end, multifunctional ultrasonic cleaning system designed for advanced laboratory, medical, and industrial applications.
It is characterized by maximum precision, flexible parameter control, and powerful ultrasonic performance, making it suitable for:
• Analytical laboratories
• Medical and pharmaceutical environments
• Precision engineering
• Industrial cleaning processes
The system integrates multi-frequency technology, programmable functions, and adjustable ultrasonic power, enabling highly controlled and reproducible cleaning and processing results.
Key Features
1. Multi-Frequency Ultrasonic Technology
• Dual frequency operation:
– 37 kHz → powerful, intensive cleaning
– 80 kHz → gentle cleaning for delicate components
• Optional automatic alternation between frequencies
This allows the same unit to handle both robust industrial cleaning and sensitive laboratory applications.
2. Adjustable Ultrasonic Power
• Power can be adjusted in 10% increments
• Range typically from 30% to 100% output
Enables precise adaptation to:
• Material sensitivity
• Contamination level
• Process requirements
3. Multiple Ultrasonic Operating Modes
The Elmasonic P offers application-optimized modes:
• Sweep Mode
– Continuous frequency variation
– Ensures uniform sound field distribution
• Pulse Mode
– Short bursts of increased power
– Effective against stubborn contaminants
• Degas Mode
– Removes dissolved gases from liquids
– Improves cavitation efficiency
• Normal / Standard Mode
– Stable frequency for mixing, dissolving, and dispersing
These modes allow fine control of the ultrasonic process depending on the task.
4. Programmable & Intelligent Operation
• Digital control system with microprocessor
• Programmable cleaning cycles
• Automatic process start when set temperature is reached (Autostart function)
• Timer:
– Up to 60 minutes or continuous mode
• Automatic shut-off:
– After extended operation (up to 8–12 hours, depending on mode)
5. Integrated Heating System
• Temperature range: 30 °C – 80 °C
• Thermostatically controlled
• Automatic safety shutdown at ~90 °C
Improves removal of:
• Oils and grease
• Organic residues
• Difficult contaminants
6. Advanced User Interface
• Large digital display showing:
– Frequency
– Power level
– Set and actual temperature
– Time
• Intuitive controls for parameter adjustment
• Memory/program functionality
7. Robust Industrial Construction
• Cavitation-resistant stainless steel tank
• Stainless steel housing (hygienic and durable)
• High-performance transducer system (sandwich design)
• Ergonomic handles for easy handling
8. Safety Features
• Dry-run protection
• Automatic shut-off after inactivity
• Temperature safety cut-off
• Protection class: IP20
• Designed for continuous professional use
Technical Specifications
Ultrasonic System
• Frequencies: 37 kHz / 80 kHz (dual frequency)
• Technology: cavitation-based ultrasonic cleaning
• Power control: adjustable (30–100%)
Electrical Data
• Mains voltage: 220–240 V (±10%)
• Frequency: 50 / 60 Hz
• Total power consumption: varies by model (approx. 370 W to >1000 W)
Heating System
• Heating power: approx. 250 W – 1250 W (depending on model)
• Temperature range: 30–80 °C

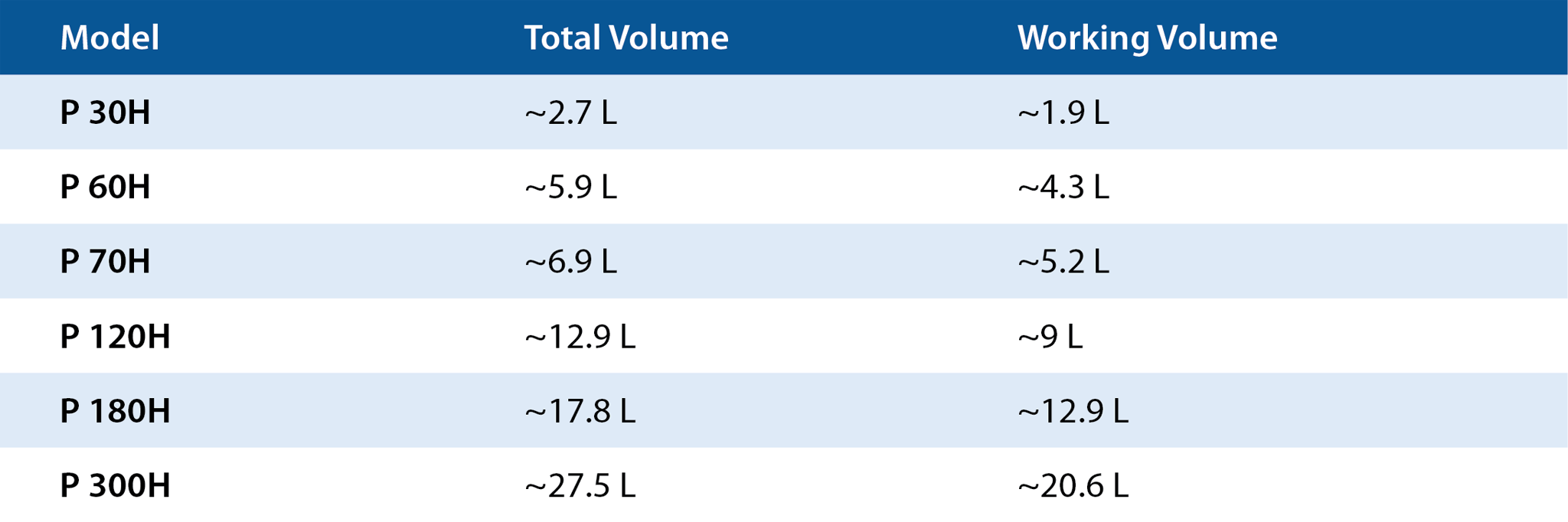

Tank Capacity (Series Range)
Mechanical Characteristics
• Stainless steel tank
• Drain valve (in most models)
• External dimensions vary by model
• Weight range: approx. 3.3 kg – 11 kg
Additional Technical Details
• Ultrasonic peak power significantly higher in Pulse mode
• Continuous operation possible with automatic safety shut-off
• Optional accessories:
– Baskets
– Lids
– Beakers
– Special holders
Applications
Laboratory
• Sample preparation
• Degassing solvents
• Mixing, dissolving, dispersing
Medical / Pharmaceutical
• Instrument cleaning
• Precision cleaning of sensitive components
Industrial
• Intensive cleaning of mechanical parts
• Removal of oils, greases, and residues
Precision Fields
• Optics
• Electronics
• Jewelry
Advantages
• Dual-frequency flexibility (powerful + gentle cleaning)
• Precise control of ultrasonic power
• Multiple operating modes for specialized tasks
• High reproducibility of results
• Robust, industrial-grade construction
• Suitable for both cleaning and laboratory processes
The Elmasonic P series is a premium ultrasonic cleaning system designed for applications requiring maximum control, flexibility, and performance.
Its combination of:
• Dual frequency technology
• Adjustable power output
• Programmable operation makes it a highly versatile and precise solution for professional environments where cleaning quality and process control are critical.
