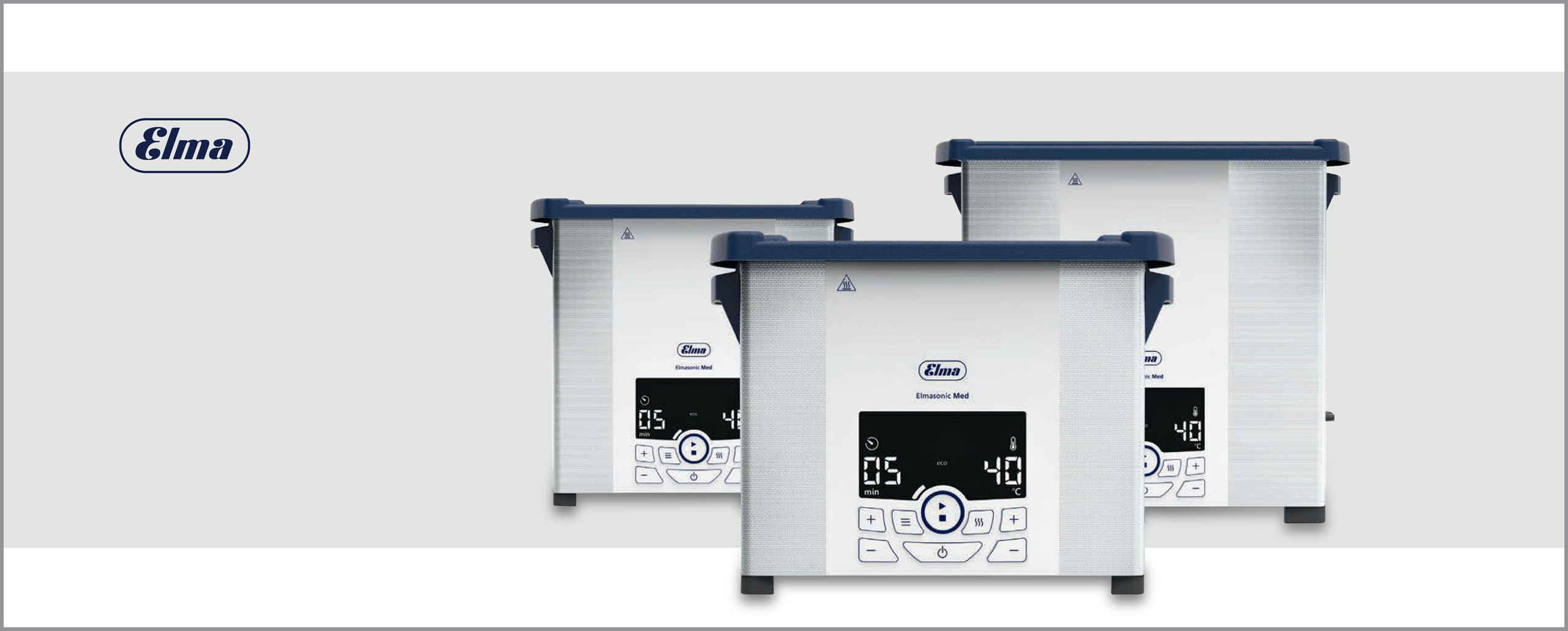

Elmasonic Med
The Elmasonic Med is a medical-grade ultrasonic cleaning system specifically designed for the standard-compliant pre-cleaning of medical devices such as surgical instruments, implants, and dental equipment.
It is fully compliant with the European Medical Device Regulation (MDR 2017/745) and classified as a Class I medical device, making it suitable for use in regulated healthcare environments.
The system is engineered to deliver safe, reproducible, and validated cleaning processes, which are essential in:
• Hospitals and Central Sterile Supply Departments (CSSD)
• Dental practices and laboratories
• Medical and clinical laboratories
• Tattoo, piercing, and podiatry studios
Key Features
1. MDR Compliance
• Certified according to EU MDR 2017/745
• Designed for legal and hygienic pre-cleaning of medical instruments
• Ensures process reliability and traceability
2. Five Ultrasonic Modes
The system provides five specialized ultrasonic modes for optimized cleaning:
• Dynamic Mode
– Alternates pulse and sweep
– Ensures strong and uniform cleaning
• Eco Mode
– Quiet and energy-efficient
– Extends device lifespan
• Sweep Mode
– Continuous frequency variation
– Homogeneous sound field
• Pulse Mode
– High-intensity bursts
– Removes stubborn contaminants
• Degas Mode
– Rapid degassing of cleaning liquids
– Improves cavitation efficiency
3. Programmable Operation
• Up to 4 storable cleaning programs
• Adjustable parameters per program:
– Time
– Temperature
– Ultrasonic mode
• Ensures repeatable and validated cleaning cycles
4. Adjustable Temperature Control
• Temperature range: 25 °C – 80 °C
• Adjustable temperature limit to:
– Prevent protein coagulation
– Protect sensitive instruments
• Thermostatic control with safety cut-off
5. Advanced User Interface
• Digital display with:
– Set and actual values
– Operating status
• Intuitive keypad control
• Visual and acoustic feedback during operation
6. Safety & User Protection
• Dry-run protection
• Automatic shut-off
• Temperature monitoring and limitation
• Designed for safe operation in medical environments
7. Hygienic & Robust Design
• Stainless steel tank (cavitation-resistant)
• Clean, easy-to-disinfect exterior design
• Compatible with medical accessories:
– Baskets
– Instrument holders
– Sound protection covers
Technical Specifications
Ultrasonic System
• Frequency: 37 kHz
• Technology: cavitation-based ultrasonic cleaning
• Modes: 5 (Dynamic, Eco, Sweep, Pulse, Degas)
Electrical Data
• Mains voltage: 220–240 V (±10%)
• Frequency: 50 / 60 Hz
• Power consumption: varies by model (approx. 100 W – 2000+ W)
Heating System
• Integrated heating (all models)
• Temperature range: 25–80 °C
• Thermostatic control

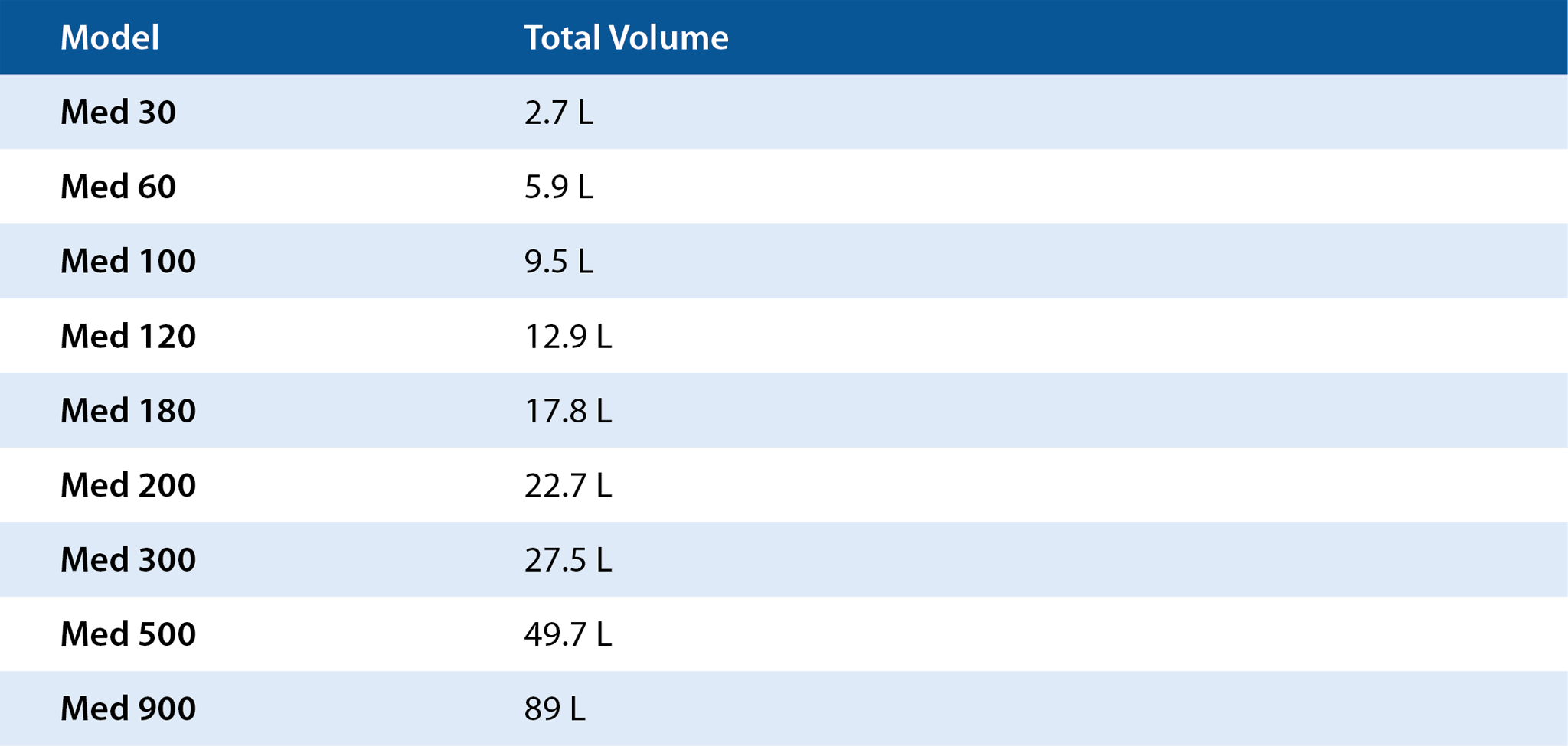

Tank Capacity
Mechanical Characteristics
• Stainless steel tank
• External dimensions vary by model
• Weight range: approx. 3.6 kg – 43 kg
• Drain connection available in medium/large models
• Compatible basket systems with defined load capacities
Applications
Medical / Healthcare
• Pre-cleaning of surgical instruments
• Cleaning of implants and prostheses
Dental
• Cleaning dental tools and equipment
Laboratories
• Sample preparation
• Decontamination processes
Specialized Practices
• Tattoo and piercing studios
• Podiatry and cosmetic medical use
Advantages
• Fully MDR-compliant (medical regulation ready)
• Designed specifically for medical workflows
• High reproducibility with programmable settings
• Safe handling of sensitive biological contamination
• Wide range of sizes for different capacities
• Reliable and consistent ultrasonic performance
The Elmasonic Med series is a professional medical ultrasonic cleaning solution developed for environments where:
• Regulatory compliance is mandatory
• Cleaning reliability and validation are critical
• Hygiene and safety standards are high
Its combination of:
• MDR certification
• programmable operation
• specialized ultrasonic modes makes it a dedicated and reliable system for medical pre-cleaning applications.
